WARN

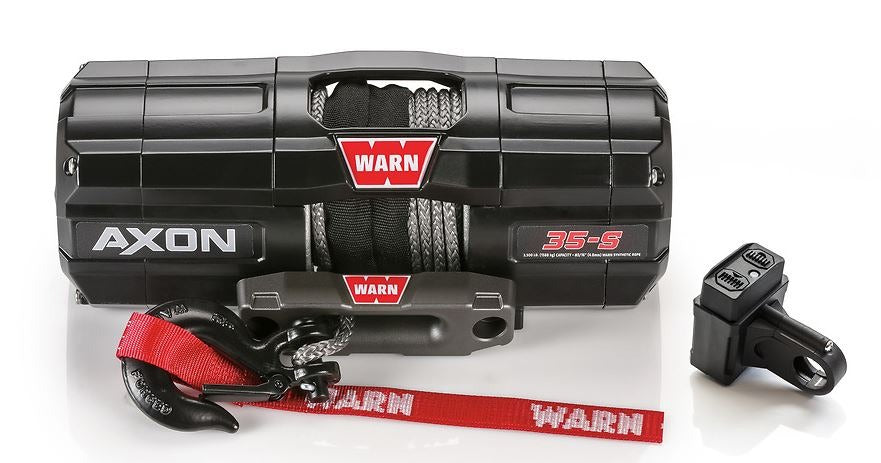

Add some brainpower to your horsepower. With advanced Motactor (motor/contactor) digital technology, IP68 rated, and a compact, easy-to-install design, the WARN AXON is the best powersports market. With pulling capacities from 3,500 to 5,500 lbs., these state-of-the-art winches will help you go prepared for any situation.

• AXON 35-S includes 50-ft. of lightweight, easy-to-handle 3/16-in. Spydura synthetic rope, Epic hawse fairlead, and black hook
• Load-holding brake for great control
• Smooth and reliable all-metal three-stage planetary gear train
• Limited lifetime warranty (mechanical), 3 year warranty (electrical)
• Plow mode allows for simplified plow controls and operation. Lets you set lifting limits and has one-touch control
• Designed, engineered, and assembled in the USA
• Stout 3,500 lb. capacity for riders who push the limits
• Revolutionary Motactor™ combines motor and contactor for easy installation, best performance
• Digital control offers never-before seen levels of reliability and user feedback, including load and temperature info
• Durable all-metal construction and one-piece tie plate (vs. tie bars) for increased structural rigidity
• IP68 waterproofing keeps water and the elements out
• Rockerbar digital control switch with handlebar mount adaptor
• Satin black powder-coated finish and stainless steel fasteners for corrosion resistance
• New clutch design based on legendary WARN 4WD hub lock know-how

Attributes:

• Brand Name: Warn
• GTIN: 00012748056027
• 26: Electric
• 289: Synthetic Rope
• 356: 4
• 684: 168:1
• 1828: Drum
• 1829: Automatic
• 1832: No
• 1833: 3-Stage Planetary
• 1834: Hawse
• 1836: Yes
• 1839: Permanent Magnet
• 1841: Yes
• Cable Diameter: 3/16
• Cable Length: 50
• Length: 13.3
• Maximum Height: 4.8
• Maximum Width: 4.6
• Motor Voltage: 12V
• Mount Type: Fixed Mount
• Mounting Bolt Pattern Length: 4.87
• Mounting Bolt Pattern Width: 3
• Rated Line Pull: 3500
• Requires Mount: Yes
• Voltage: 12V
• WARNING CA Proposition 65: Yes

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each:
• Package UOM:
• Dimension: 18.0000 x 10.0000 x 6.0000 inches
• Weight: 26.5000 POUNDS
