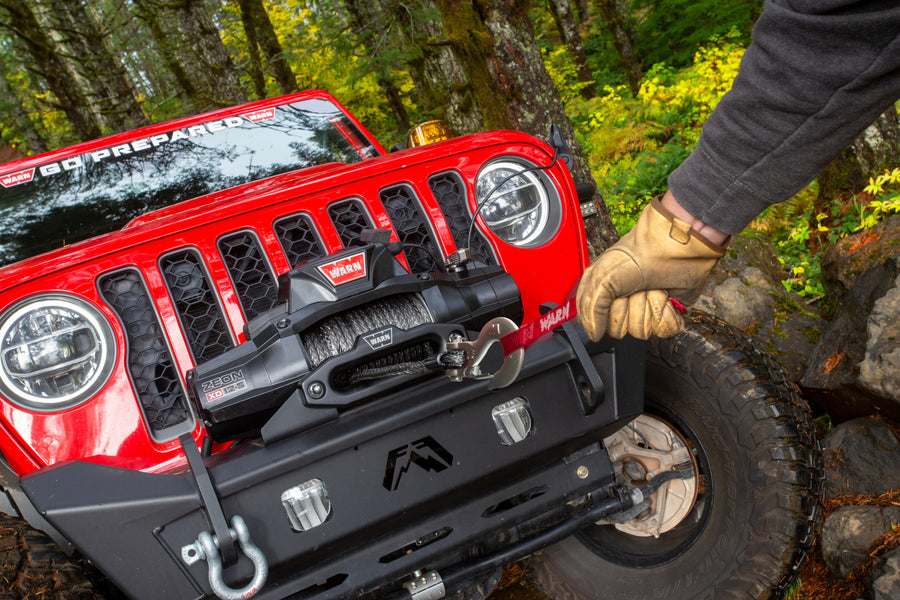

Advanced, capable, and tough, the 12,000 lb. capacity ZEON XD 12-S is perfect for full-size trucks and larger 4x4s, and built to endure over the long haul. As the evolution of the ZEON family, this is the go-to winch for off-roaders who value reliability, durability, and performance, no matter where adventure takes you. With upgraded waterproofing, increased corrosion protection, and best-in-class linespeeds, ZEON XD is ready for when you need it most. Plus, they're designed, engineered, and assembled in the USA.

• High-performance motor and geartrain deliver blazing fast no-load line speeds of 31 ft/min
• Includes HUB Wireless Receiver for 100'+ of range when paired with the WARN Hub app. Ruggedized corded remote with 12' lead also included
• Includes 80' of lightweight, easy-to-handle 3/8" Spydura Pro synthetic rope with a large-radius black forged-aluminum hawse fairlead
• IP68 water submersion and IP69K high pressure spray rating, achieved through the use of automotive-grade O-ring sealing
• OE-grade paint and fasteners increase resistance to fading and corrosion, ensuring ZEON XD stays pristine for years to come
• Full metal armor safeguards components from impact, damage, and trail debris.
• Includes HUB Wireless Receiver for 100'+ of range when paired with the WARN Hub app. Ruggedized corded remote with 12' lead also included.
• Albright contactor control and bus bars provide ultimate electrical reliability
• Includes 100' of lightweight, easy-to-handle 3/8" Spydura synthetic rope with a large-radius black forged-aluminum hawse fairlead
• Industry-leading warranty: Limited lifetime mechanical, seven year electrical all backed by a global service network.
• Full metal armor safeguards components from impact, damage, and trail debris

Attributes:

• Brand Name: Warn
• GTIN: 00012748110767
• 26: Electric
• 289: Synthetic Rope
• 356: 4
• 684: 141:1
• 1829: Automatic
• 1832: No
• 1833: 3-Stage Planetary
• 1834: Hawse
• 1836: Yes
• 1837: Yes
• 1839: Series Wound
• 1841: Yes
• 1842: Yes
• 1843: Wire
• 1845: No
• Brake Type: Cone
• Cable Diameter: 3/8
• Cable Length: 100
• Color: Black
• Length: 23.9
• Maximum Height: 10.5
• Maximum Width: 7.1
• Motor Voltage: 12V
• Mount Type: Fixed Mount
• Mounting Bolt Pattern Length: 4.5
• Mounting Bolt Pattern Width: 10
• Rated Line Pull: 10000
• Requires Mount: Yes
• Solenoid Type: Contactor
• Voltage: 12V
• WARNING CA Proposition 65: Yes
• Winch Rating: Electric

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 18.5000 x 27.0000 x 8.5000 inches
• Weight: 84.0000 POUNDS
