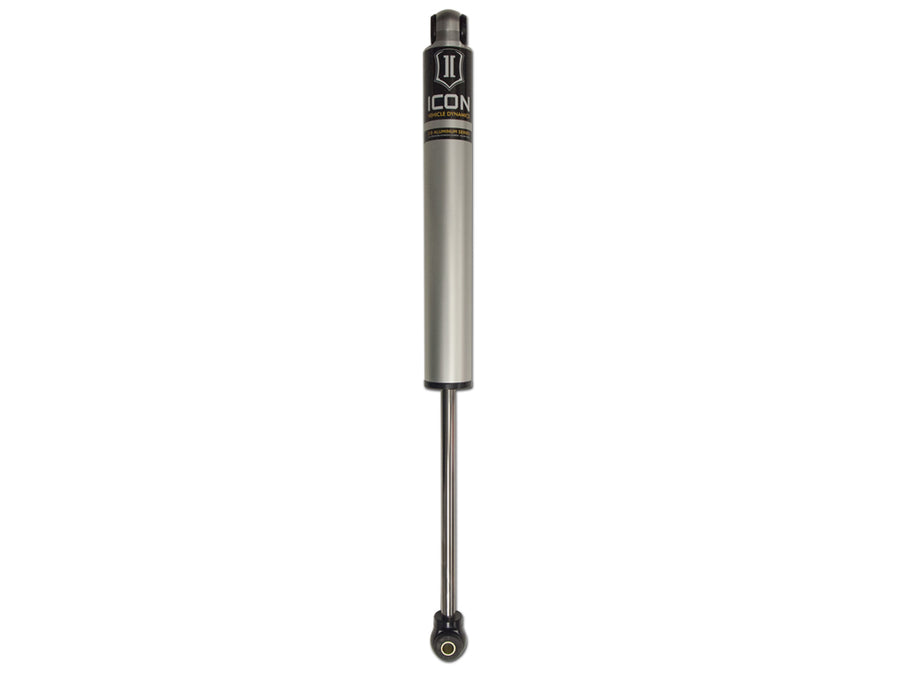

ICON Universal 2.0 Aluminum Series Rear Shock Heavy Duty Valving 11” Travel

ICON 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades. The 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON 2.5 Series shocks to handle extra abuse and punishment your suspension will need to endure.

• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• 100% revalveable
• Nitrogen charged emulsion shock
• One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 5/8” chrome plated hardened steel shaft resists corrosion and pits
• 6061 aluminum rod end, top cap, and internals ensure strength and durability
• Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
• 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
• Nitrile rubber top out bumper for noise free operation
• 100% rebuildable

Vehicle Specific

• ICON UNIVERSAL 11" TRAVEL 2.0 NR HDRV

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103400334
• 30: No
• 37: 25.75
• 38: 10.82
• 48: Eyelet
• 49: EYELET
• 50: No
• 51: Yes
• 52: 2
• 107: 14.93
• 108: 10.82
• 200: Anodized
• 408: CENTER OF EYELET
• 409: CENTER OF EYELET
• 1385: Gray
• 2329: Aluminum
• 3085: Single Tube
• 3390: Performance
• 8703: No
• 9783: No
• 9792: No
• 9908: Yes
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Adjustable Damping: No
• Bore Diameter: 1.75
• Bushing Color: Black
• Bushing Included: yes
• Bushing Material: Polyurethane
• California Prop 65 Warning: Yes
• Coil Over Springs Included: No
• Damping Type: Oil
• Dust Boot Included: No
• Dust Shield: No
• Mounting Width: 1.5" x 1/2" Bolt (Upper&Lower)
• Remote Reservoir: NO
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Shaft Diameter: 0.625
• Shaft Material: Chrome

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 40.0000 x 3.0000 x 3.0000 inches
• Weight: 4.0000 POUNDS
