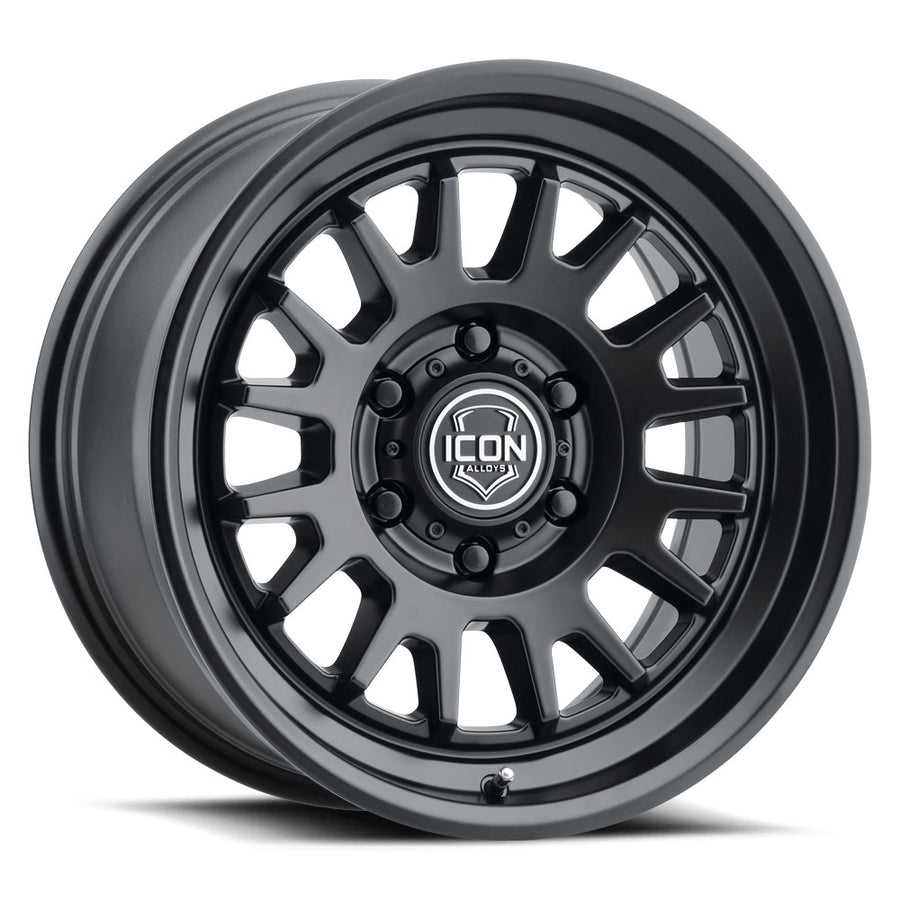

ICON Alloys Anza Satin Black 17 X 8.5 / 5 X 5.5 0mm Offset 4.75" BS

Staying true to the ICON Alloys approach, the Anza has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace dimensions and wheel offset have been strategically developed to reduce scrub radius, improving all-around handling and ride quality and making a set of these wheels the perfect complement to an ICON Vehicle Dynamics suspension system.

• Concave profile with deep stepped lip
• 17" X 8.5" in 5-lug & 6-lug bolt patterns
• Satin black powder coat finish for sleek looks and corrosion resistance
• Application-specific dimensions optimize vehicle dynamics and tire clearance
• Reduced unsprung weight and rotating mass improves on and off-road vehicle performance
• Aluminum alloy construction provides strength properties that are well suited for off-road use
• 2750lbs load rating

Vehicle Specific

• ICON ALLOYS ANZA SATIN BLACK - 17 X 8.5 / 5 X 5.5 / 0MM / 4.75" BS

Attributes:

• Brand Name: ICON Alloys
• GTIN: 00840103435572
• 10: Aluminum
• 17: Satin Black
• 18: 77.9
• 24: 8.5
• 111: 17
• 200: Powdercoated
• 1712: 1.1
• 3032: 5
• 3390: Performance
• 3775: No
• 3776: 0
• 3777: 0
• 3778: Yes
• 4183: 77.9
• 4916: 16
• 8526: 0
• 8763: yes
• 9097: 4.75
• 9098: 5 X 5.5
• 9099: No
• 9542: No
• California Prop 65 Warning: Yes
• Center Cap Part Number: RW-5139 - ICON ALLOYS - REBOUND/COMPRESSION LOW PRO CENTER CAP - 5X5.5
• Construction: Cast
• Lug Nut Seat Type: Conical
• Maximum Load Rating: 2750
• Rim Diameter: 17
• Rim Width: 8.5
• Tires Included: No
• Wheel Lug Hole Quantity: 5
• Wheel Nuts Included: No
• Wheel Size: 17x8.5

Extended Information:

• Country of Origin: Thailand
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 19.0000 x 20.0000 x 10.0000 inches
• Weight: 30.0000 POUNDS

PDF:
