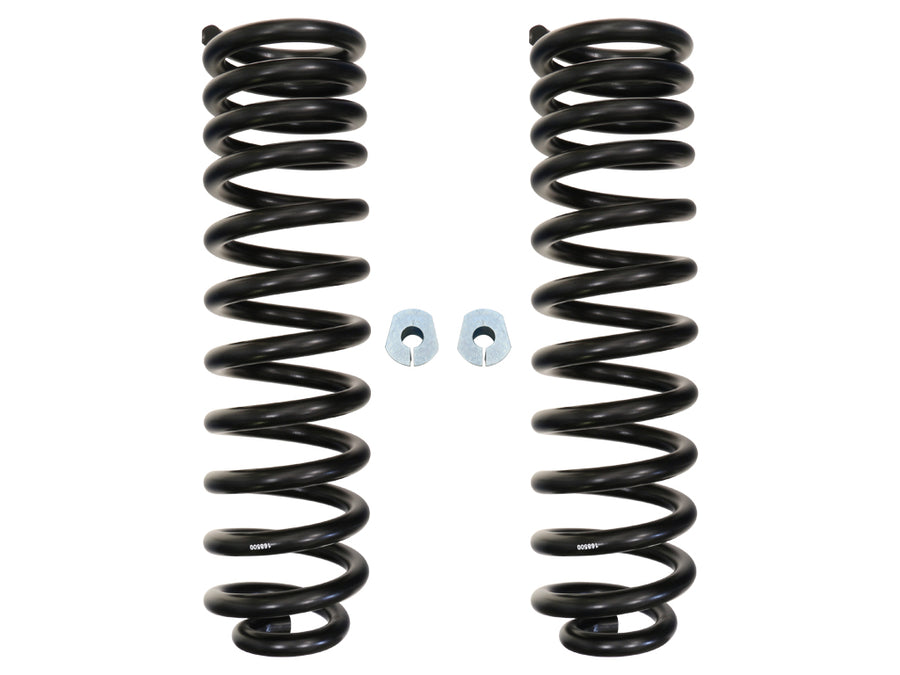

ICON 2023 Ford F-250/F-350 Super Duty 4WD Gas 2.5" Lift Front Dual Rate Coil Spring Kit W/ Caster Cams

The ICON Vehicle Dynamics 2023 F-250 and F-350 Super Duty 2.5" coil springs are designed for drivers demanding the ultimate in performance and ride quality, while allowing for increased wheel travel (when used with ICON shocks) and the fitment of larger tires. The ICON Ford Super Duty coil springs provide 2.5" of lift height and feature a dual rate design optimized for use with trucks equipped with gasoline engines. The dual rate design allows for a softer initial rate for superb on-road comfort and a firmer secondary rate that increases during compression for excellent bottoming resistance and off-road performance. Caster correction cams are also included to ensure proper caster angle with the new, taller ride height. Like all ICON coil springs, they feature a lifetime guarantee against sagging/breakage to produce confidence in knowing that you have the best suspension products available for the 2023 Super Duty.

• 2.5" lift height
• Dual rate coil springs improve on and off-road ride quality over stock
• Dual-stage, semi-gloss powder coat offers excellent corrosion resistance
• Caster cam kit included for ideal caster angles with ride height increase
• 100% bolt-on system makes for an easy install
• Lifetime warranty against sagging/breakage

Vehicle Specific

• ICON 23 FORD F-250/F-350 FRONT 2.5” GAS DUAL RATE SPRING KIT W/ CAMS

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103426358
• 200: Powdercoated
• 2064: Steel
• 3096: Black
• 3390: Performance
• 4514: No
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 61111 - 17-25 FSD FRONT 2.5" EXTENDED SS BRAKE LINE KIT
• Alignment Cams Included: Yes
• Bump Stops Included: No
• California Prop 65 Warning: Yes
• Color: Black
• Front Spring Rate Type: Progressive Dual Rate
• Material: Steel
• Maximum Lift Height: 2.5
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available Only While Supplies Last

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 12.0000 x 6.0000 inches
• Weight: 65.0000 POUNDS
