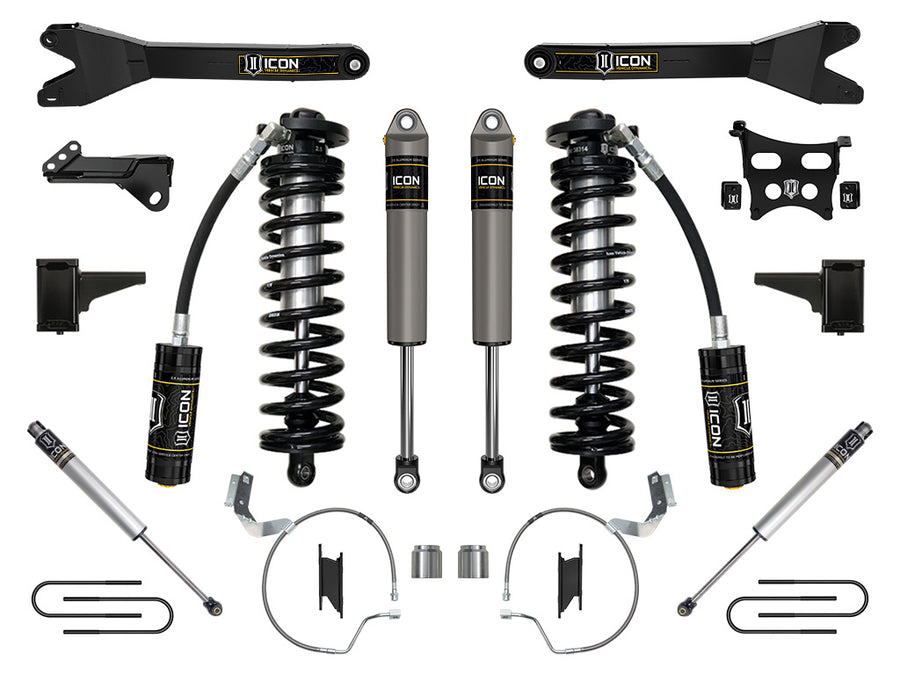

ICON 2023-2025 Ford F-250/F-350 Super Duty 4WD 4-5.5" Lift Stage 3 Coilover Conversion System W/ Radius Arms

This suspension system features high quality CNC machined, laser cut, and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system, you can rest assured you have the best suspension solution on the market.

• Fits 2023-2025 F-250 / F-350 4WD applications
• Corrosion resistant anodized steering stabilizer shock bodies with 5/8" shafts
• Stainless steel braided front brake lines
• Heavy-duty fabricated rear lift blocks
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Corrosion resistant hard anodized rear shock bodies with 7/8" shafts
• Shocks are fully rebuildable and re-tunable
• Lifetime guarantee against coil spring breakage or sagging
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• Bolt-in system fits in OE coil bucket location
• Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5" of front lift
• Vehicle-specific shock valving provides unparalleled ride quality and control
• ICON 2.5 Aluminum Series internal reservoir rear shocks
• Increased wheel travel and ride quality over stock
• Fabricated radius arms provide increased strength, on vehicle caster adjustment, improved tire clearance at steering lock, and higher ground clearance
• Track bar drop bracket reduces track bar angle and corrects bump steer geometry
• Dual steering stabilizer kit offers increased steering damping

Vehicle Specific

• 23-25 FORD F250/F350 4-5.5" STAGE 3 COILOVER CONVERSION SYSTEM W/ RADIUS ARMS

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103434421
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 4427: Black
• 5520: 6
• 5772: Steel
• 5773: Black
• 7325: 2
• 9271: Linear
• 11410: 6
• 11411: 2
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Passive
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Adjustable Compression: No
• Adjustable Control Arm: Yes
• Adjustable Damping: No
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Coil Quantity Front: 2
• Front Reservoir Style: Remote
• Front Shock Body Diameter: 2.5
• Maximum Lift Front: 6
• Maximum Lift Rear: 2
• Minimum Lift Front: 3
• OEM Wheels & Tires Fitment: Yes
• Rear Reservoir Style: Internal
• Rear Shock Body Diameter: 2.5
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 40.0000 x 13.0000 x 11.0000 inches
• Weight: 251.0000 POUNDS
