ICON Vehicle Dynamics

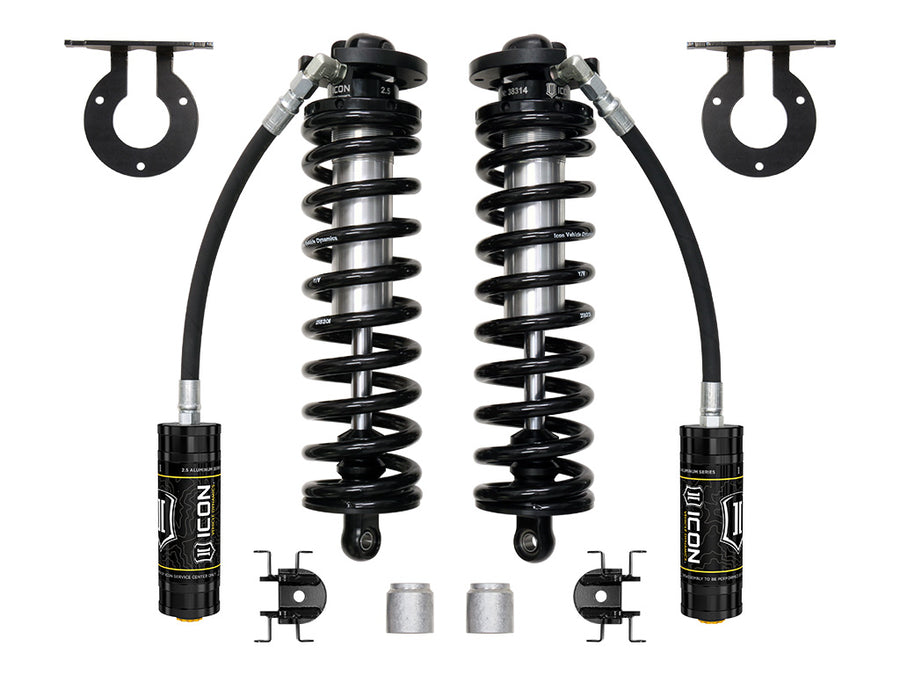

ICON 2023-2025 Ford F-250/F-350 Super Duty 4WD 2.5-3” Lift V.S. 2.5 Series Coilover Conversion Kit Remote Reservoir
$2,502.10
Authorized dealer — genuine parts & manufacturer warranty
Free shipping on orders over $199 (lower 48 states)
Professional installation at our Burien shop — 206-774-2000
Finance with Sunbit — decisions in seconds, 3–24 months
Product Details
ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2023-2025 F-250 and F-350 pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.
- Bolt-in system fits in OE coil bucket location
- Ride height adjustable coilovers provide 2.5-3"
- Decreased body roll and improved on and off-road ride dynamics
- Vehicle-specific shock valving provides unparalleled ride quality and control
- Shocks are fully rebuildable and revalveable
- Coilover conversion allows for addition of secondary shock
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- ICON engineered coil springs guaranteed for life against sagging or breakage
- FK Rod End bearings for extended longevity and minimal deflection
- ICON 23-25 F250/F350 4WD 2.5-3" 2.5 VS RR BOLT IN CO CONVERSION KIT
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103431857
- 306: Yes
- 2064: Steel
- 2329: Steel
- 3085: Single Tube
- 3096: Black
- 3390: Performance
- 7233: No
- 8703: No
- 9476: Yes
- 9783: Yes
- 10107: 400
- 10527: No
- 10528: Yes
- 10530: Passive
- 10535: 3.75
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Adjustable Damping: NO
- Adjustable Height: yes
- Alignment Cams Included: No
- Body Diameter: 2.5
- California Prop 65 Warning: Yes
- Coil Over Springs Included: Yes
- Compressed Length: 12.75
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Damping Type: Oil
- Extended Length: 19.71
- Gas Charged: yes
- Lower Mount Type: Eyelet
- Material: Aluminum
- Maximum Lift: 3.75
- Minimum Lift: 2.5
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Reservoir Style: Remote
- Self-Leveling: No
- Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Spring Rate Type: Linear
- Travel Length: 6.96
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
Extended Information:
- Country of Origin: United States
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 31.0000 x 13.0000 x 7.0000 inches
- Weight: 67.0000 POUNDS
