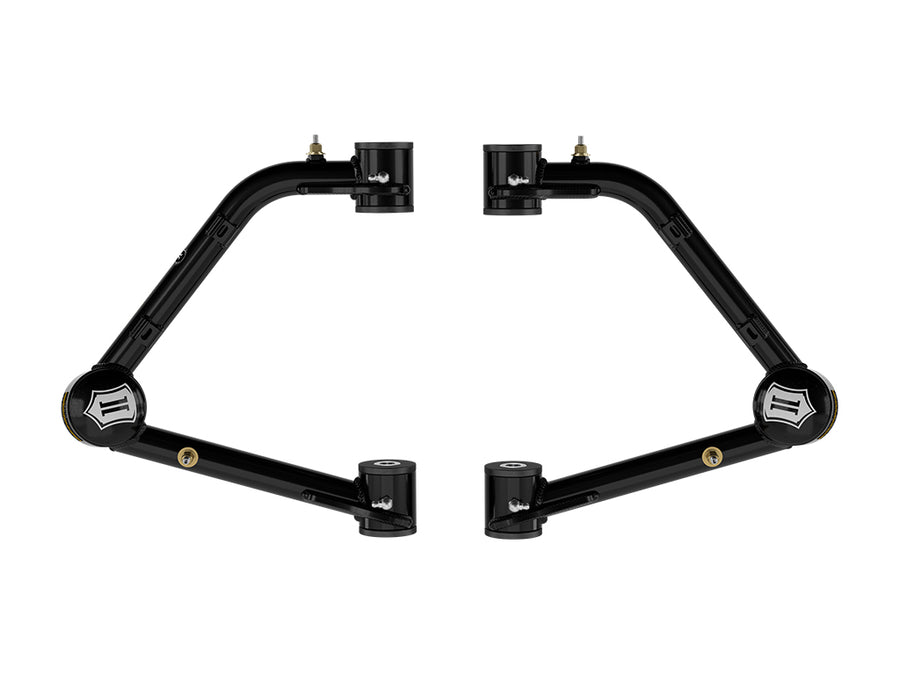

ICON 2023-2024 Chevrolet Colorado WT LT & Z71 Tubular Upper Control Arms W/ Delta Joint PRO

ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.

• Built in added caster for better handling on lifted vehicles
• Delta Joint PRO allows maximum articulation without binding
• Delta Joint PRO is 100% serviceable and rebuildable
• Serviceable dual stage pivot bushings
• CNC machined housings for bushings and Delta Joint PRO
• 1026 DOM tube construction with black powder coat finish
• Includes billet dust caps for Delta Joint PRO

Vehicle Specific

• ICON 23-24 CHEVROLET COLORADO TUBULAR UCA DJ KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103427584
• 30: Yes
• 40: No
• 73: Polyurethane
• 158: Tubular
• 1260: Yes
• 2330: Yes
• 2339: yes
• 2354: Performance
• 2371: Yes
• 2382: Press In
• 2383: Threaded
• 2384: Yes
• 2386: Tubular
• 2389: DOM Steel
• 3390: Performance
• 4888: Black
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Adjustable Control Arm: No
• Bushing Color: Black
• California Prop 65 Warning: Yes
• Color: Black
• End 1 Type: Bushing
• End 2 Type: BALL JOINT
• Finish: Powdercoat
• Material: DOM Steel
• OEM Wheels & Tires Fitment: Yes
• Quantity: Pair
• Recommended Aftermarket Tires: 33" x 12.50"
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.46” Backspace / 18mm Offset
• Service Parts: 614531 - 78660DJ / 78661DJ REPLACEMENT BUSHING AND SLEEVE KIT

Extended Information:

• Country of Origin: United States
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 17.0000 x 13.0000 x 8.0000 inches
• Weight: 22.0000 POUNDS
