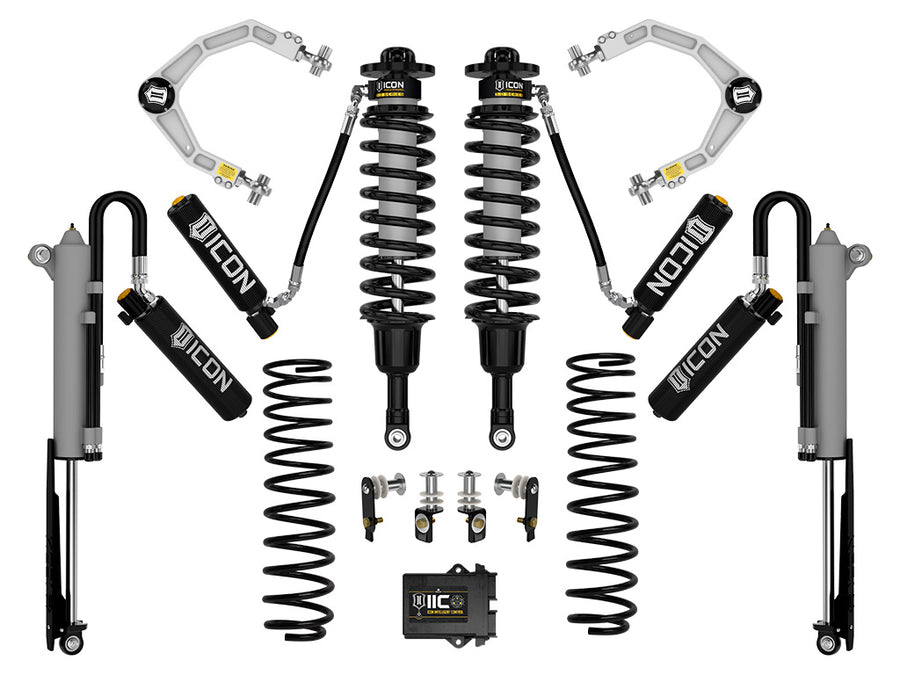

ICON 2021-2025 Ford F-150 Raptor 1-3" Lift Stage 4 Suspension System Overland Rear Springs

ICON Vehicle Dynamics products are proudly designed, manufactured, and assembled in Riverside, California by a team of passionate off-road enthusiasts. With a reputation for quality, performance, and service it's clear that ICON Vehicle Dynamics is the top choice for performance suspension systems and shock absorbers for the 2021-2025 Ford F-150 Raptor.

• Adjustable 3.0” diameter coilovers yield 1-3” of front lift height
• Application specific shock length designed to be paired with ICON rear coil springs provides up to 17" of rear wheel travel
• Solenoid mounts bypass factory electronic shock system, keeping OE solenoid coils connected to prevent error codes
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• Superior low speed control reduces body roll and increases on-road stability
• High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
• Fully serviceable shock absorber design allows for revalves, rebuilds, and an immeasurable service life
• ICON's Compression Damping Electronic Valve (CDEV) technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON’s multi-stage hydraulic coilover “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
• Finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
• Billet aluminum front upper control arms feature patented Delta Joint Pro (U.S. Pat. 10,731,700) allowing maximum wheel travel without binding
• Adjustable control arms correct suspension geometry and offer quick, precise, on-vehicle adjustment for both caster and camber
• Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates yield 1" rear lift height over stock with approximately 300lbs of additional weight in the rear
• 3.0” diameter RXT 3-tube bypass rear shocks with 3.0” diameter finned remote reservoirs
• Unique side-mounted rear shock upper eyelets allow for increased travel while utilizing factory mounting location

Vehicle Specific

• ICON 21-25 FORD F150 RAPTOR 1-3" STAGE 4 SUSPENSION SYSTEM OVERLAND

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103435541
• 30: Yes
• 2064: Steel
• 2371: No
• 3096: Black
• 3097: Yes
• 3390: Performance
• 4427: Black
• 4428: Steel
• 5520: 3
• 7325: 2
• 7326: 2
• 9271: Linear
• 11410: 3
• 11411: 1
• Active or Passive Suspension: Active
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Adjustable Compression: Yes
• Adjustable Control Arm: Yes
• Adjustable Damping: Yes
• Adjustable Rebound: Rear Only
• California Prop 65 Warning: Yes
• Coil Quantity Front: 2
• Damping Adjustment Type: Electronic
• Front Reservoir Style: Remote
• Front Shock Body Diameter: 3
• Maximum Lift Front: 3
• Maximum Lift Rear: 1
• Minimum Lift Front: 1
• Rear Reservoir Style: Remote
• Rear Shock Body Diameter: 3
• Rear Spring Rate Type: Progressive Triple Rate

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 33.0000 x 15.0000 x 11.0000 inches
• Weight: 245.0000 POUNDS
