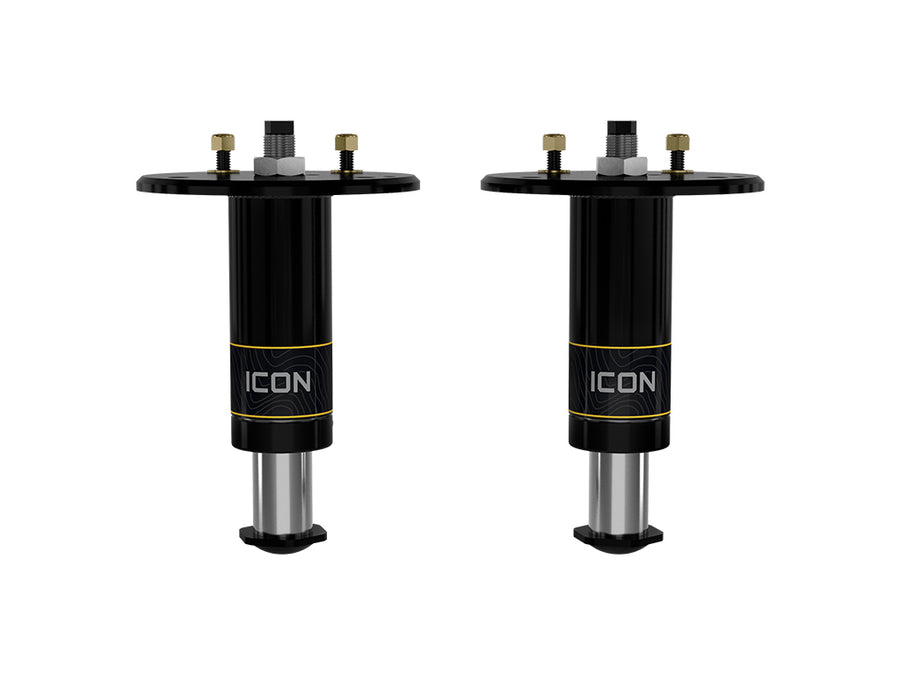

ICON 2021-2024 Ram 1500 TRX/2025 Ram 1500 RHO Rear 2.5" Hydraulic Bump Stop Kit 2.25" Travel
$1,522.13
Authorized dealer — genuine parts & manufacturer warranty
Free shipping on orders over $199 (lower 48 states)
Professional installation at our Burien shop — 206-774-2000
Finance with Sunbit — decisions in seconds, 3–24 months
Product Details
This hydraulic bump stop system was developed as an OEM replacement, making installation a simple and straightforward bolt-on affair. Simply installing on top of the rear coil springs with the included mounting brackets, you have the option to return the vehicle back to its stock form. The factory rubber bump stops have a limited energy absorption capacity and a rapid release of this energy upon rebound – This translates into a harsh ride and poor handling in rough terrain. ICON hydraulic bump stops absorb and release this energy in a much more controlled manner due to the digressive rebound piston valving, resulting in predictable handling and vehicle dynamics.
- 2.5” diameter bump stops with 2.25” of travel
- CNC laser cut steel mounting brackets
- Semi-gloss black powder coat finish on brackets for corrosion resistance
- 100% bolt-on installation on top of rear coil springs
- Impact extruded, hard anodized aluminum bump stop bodies
- Heavy duty 1.625" diameter hardened, chrome plated steel shafts
- Internal reservoir design provides more consistent and predictable performance than emulsion bump stops
- Velocity/position sensitive technology exponentially increases bottom-out resistance
- Vehicle specific bump stop tune provides smooth engagement and excellent ride quality
- Replaceable, noise reducing striker pads
- CNC machined 6061 billet aluminum components
- Bump stops are fully rebuildable and re-tunable
- ICON 21-24 RAM 1500 TRX/25 RAM 1500 RHO REAR 2.5" BUMP STOP KIT 2.25" TRAVEL
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103429571
- 10: Aluminium
- 3390: Performance
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Attachment Type: Bolt On
- Bumper Material: Hydraulic
- Bumper Type: Hydraulic
- California Prop 65 Warning: Yes
- Color: Black
- Diameter: 2.5
- Grade: Performance
- Mounting Hardware Included: yes
- Mounting Hardware Required: No
- Outside Diameter: 2.5
- Travel Length: 2.25
Extended Information:
- Country of Origin: United States
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 17.0000 x 13.0000 x 8.0000 inches
- Weight: 35.0000 POUNDS
