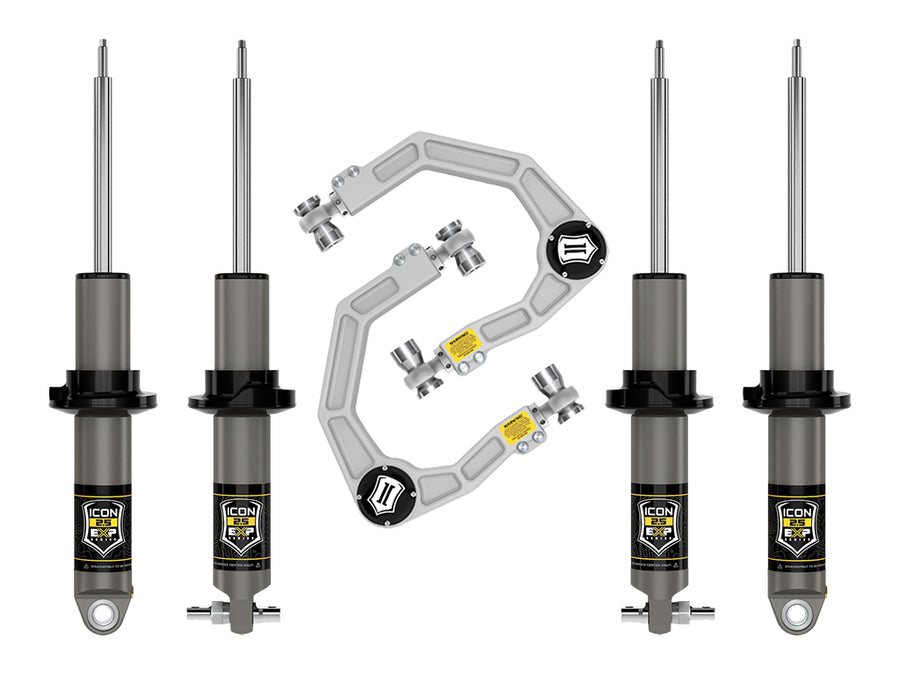

ICON 2021-2023 Ford Bronco HOSS 2.0 Pkg 0-2" Lift Stage 2 Suspension System Billet

HOSS 2.0 is Ford's upgraded suspension system for Broncos of the Base, Big Bend, Outer Banks and Black Diamond trim levels WITH the optional Sasquatch package, and it is also standard on Badlands, Wildtrak, First Edition and Everglades. HOSS 2.0 is most easily identified by the YELLOW shock bodies of the OE shocks.

• Vehicle specific design for 2021-2023 Ford Bronco with HOSS 2.0 Suspension Package
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 100% Bolt-on - no cutting or welding necessary for installation
• Fully rebuildable and re-tunable
• Vehicle specific tuned shocks for superior shock damping and vehicle control
• Kit includes full set of (4) 2.5 Aluminum Series EXP Shocks with Internal Reservoirs
• Adjustable ride heights from 0-2” of front lift and 0-1.75" of rear lift over stock with the use of snap rings
• Utilizes factory coils and coil hardware
• Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shafts
• One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
• CNC machined 6061 aluminum components with a black anodized finish
• PTFE lined spherical bearings for extended longevity and minimal deflection

Vehicle Specific

• ICON 21-23 BRONCO HOSS 2.0 PKG 0-2" LIFT STAGE 2 SUSPENSION SYSTEM BILLET

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103420936
• 30: Yes
• 2371: Yes
• 3097: Yes
• 3390: Performance
• 5520: 2
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Passive
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Adjustable Compression: No
• Adjustable Control Arm: Yes
• Adjustable Damping: No
• California Prop 65 Warning: Yes
• Front Shock Body Diameter: 2.5
• Maximum Lift Front: 2
• Maximum Lift Rear: 1.75
• Minimum Lift Front: 0
• Minimum Lift Rear: 0
• OEM Wheels & Tires Fitment: No
• Rear Shock Body Diameter: 2.5
• Recommended Aftermarket Tires: (Without Sasquatch Package): 35" x 12.50" (Requires high clearance crash bars, ICON part number 42000. 37" tire packagesrequire coilover bump stop spacers along with trimming and modifications)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
• Reservoir Style: Internal

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 32.0000 x 6.0000 x 5.0000 inches
• Weight: 74.0000 POUNDS
