ICON Vehicle Dynamics

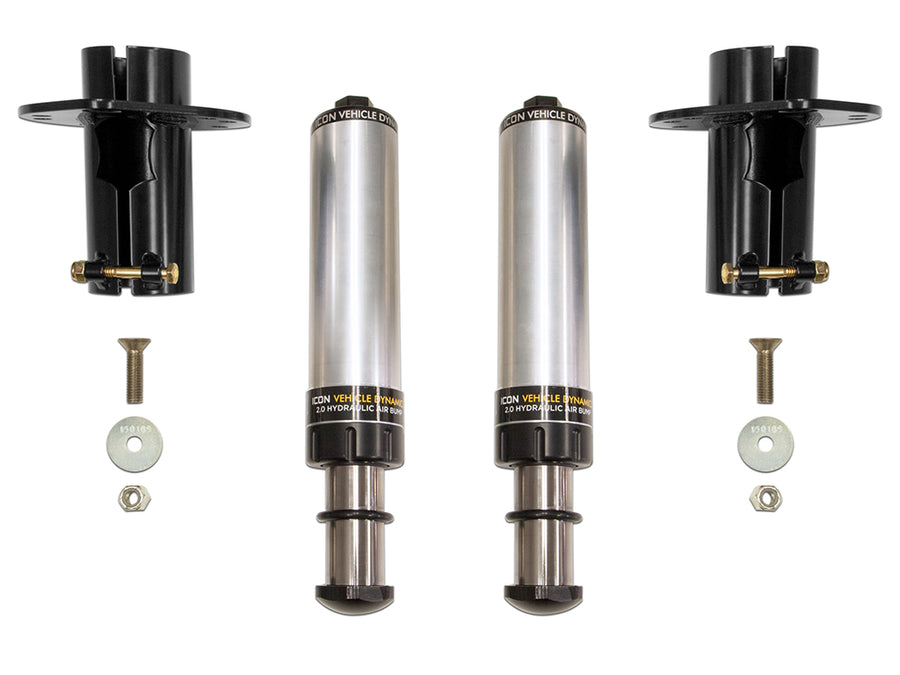

ICON 2020-2023 Jeep Gladiator/2018-2023 Wrangler JL/2007-2018 Wrangler JK Front 2.0 Hydraulic Bump Stop Kit
$1,007.10
Authorized dealer — genuine parts & manufacturer warranty
Free shipping on orders over $199 (lower 48 states)
Professional installation at our Burien shop — 206-774-2000
Finance with Sunbit — decisions in seconds, 3–24 months
Product Details
The ICON Vehicle Dynamics Front Hydraulic Bump Stop Kit for the 2007-2018 Jeep Wranger JK, 2018-2023 Jeep Wrangler JL and 2020-2023 Jeep Gladiator was deigned to provide unparalleled off-road performance at the limits of wheel travel by adding an extra layer of ICON damping ability to the front of your Jeep. The function of the bump stop is to control and limit the final position of the suspension during up-travel. The factory bump stops have a limited energy absorption capacity and an uncontrolled release of this energy upon rebound – translating into a harsh ride and poor handling during more aggressive driving in rough terrain. ICON’s Front Hydraulic Bump Stop Kit features velocity sensitive technology meaning that as the shaft speed increases the damping ramps up to provide excellent bottoming resistance that won’t negatively affect articulation. This energy is then released in a much more controlled manner allowing drivers to focus on the obstacles in front of them rather than being bounced around the cab.
- Straightforward bolt-on installation
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- 2.5” travel hydraulic bump stop reduces front end bottom-out and improves overall vehicle performance
- Steel bump stop brackets guaranteed for life against breakage or manufacturer defect
- Velocity sensitive technology exponentially increases bottom-out resistance
- Vehicle specific bump stop tune provides smooth engagement and excellent ride quality
- Heavy duty 1.25” CNC machined nitro steel shafts
- Multi-stage CAD plated body for maximum corrosion resistance
- Replaceable noise-reducing striker pad
- Fully serviceable
- ICON 20-23 JT/18-23 JL/07-18 JK FRONT 2.0 HYD BUMP STOP KIT
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103401447
- 10: Aluminium
- 3390: Performance
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Attachment Type: Bolt On
- Bumper Material: Hydraulic
- Bumper Type: Hydraulic
- California Prop 65 Warning: Yes
- Color: Black
- Diameter: 2
- Grade: Performance
- Length: 2.5
- Mounting Hardware Included: yes
- Mounting Hardware Required: No
- Outside Diameter: 2
- Service Parts: 202004 - 2.0 AIR BUMP REBUILD KIT
Extended Information:
- Country of Origin: US
- Emissions : Announced
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 14.0000 x 8.0000 x 6.0000 inches
- Weight: 15.0000 POUNDS
