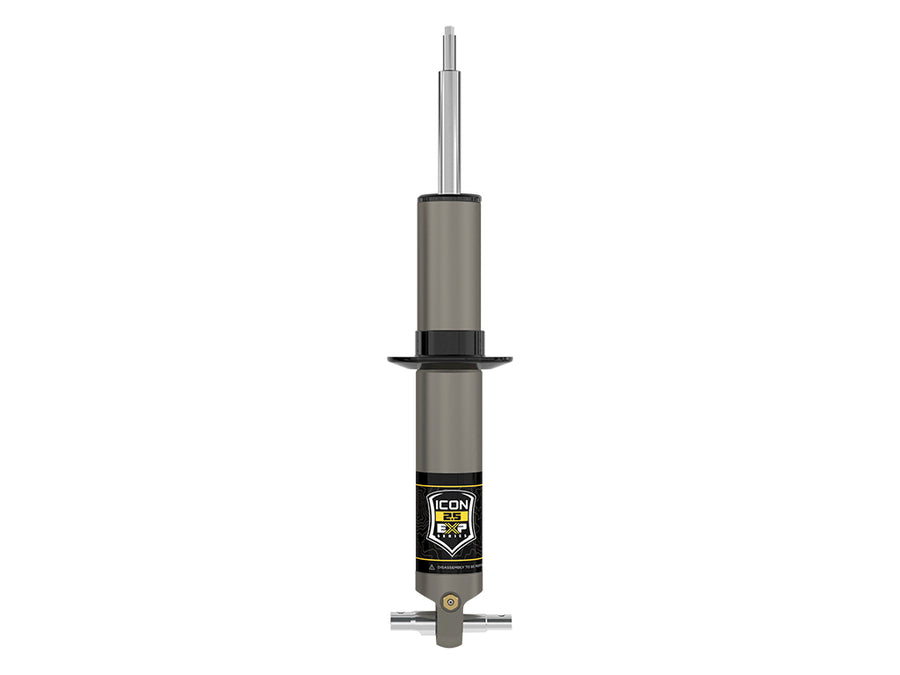

ICON 2019-2023 GM 1500 Front 2.38-3.75" Lift 2.5 EXP Coilover

EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the 2019-2023 GM 1500 in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.

• Vehicle specific design for the 2019-2023 GM 1500 trucks
• Fully rebuildable and re-tunable
• Adjustable ride heights from 2.375-3.75” of front lift over stock with the use of snap ring
• Utilizes factory coils
• 2.5 Aluminum Series Shock with Internal Reservoir
• CNC machined 6061 aluminum components with a black anodize finish
• PTFE lined bearings for extended longevity and minimal deflection
• Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
• One-piece impact extruded aluminum hard anodized cylinders offer excellent corrosion resistance and consistent finish
• 100% Bolt-on - no cutting or welding necessary for installation

Vehicle Specific

• ICON 19-23 GM 1500 FRONT 2.5 EXP COILOVER

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103421551
• 37: 22.11
• 48: BAR PIN
• 84: No
• 107: 16.75
• 108: 5.37
• 2329: Aluminum
• 3065: 2.5
• 3085: Single Tube
• 3390: Performance
• 5126: Gray
• 7233: No
• 8703: No
• 9621: No
• 9783: No
• 10526: Digressive
• 10527: No
• 10528: Yes
• 10529: No
• 10530: Passive
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Adjustable Damping: NO
• Assembled: No
• Body Diameter: 2.5
• California Prop 65 Warning: Yes
• Cylinder Finish: Hard Anodized
• Damping Type: Oil
• Gas Charged: Yes
• Material: Aluminum
• Maximum Lift: 3.75
• Maximum Ride Height Raising Distance: 3.75
• Minimum Lift: 2.375
• Remote Reservoir: NO
• Reservoir Style: Internal
• Service Parts: 252010 - 2.5 IFP REBUILD KIT
• Shaft Diameter: 0.875
• Shaft Material: Chrome
• Shock Absorber Body End Measuring Point: Flat on Bar Pin
• Shock Absorber Rod End Measuring Point: Shoulder of Stem
• Upper Mount Type: Mounting Plate

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 32.0000 x 6.0000 x 5.0000 inches
• Weight: 13.0000 POUNDS
