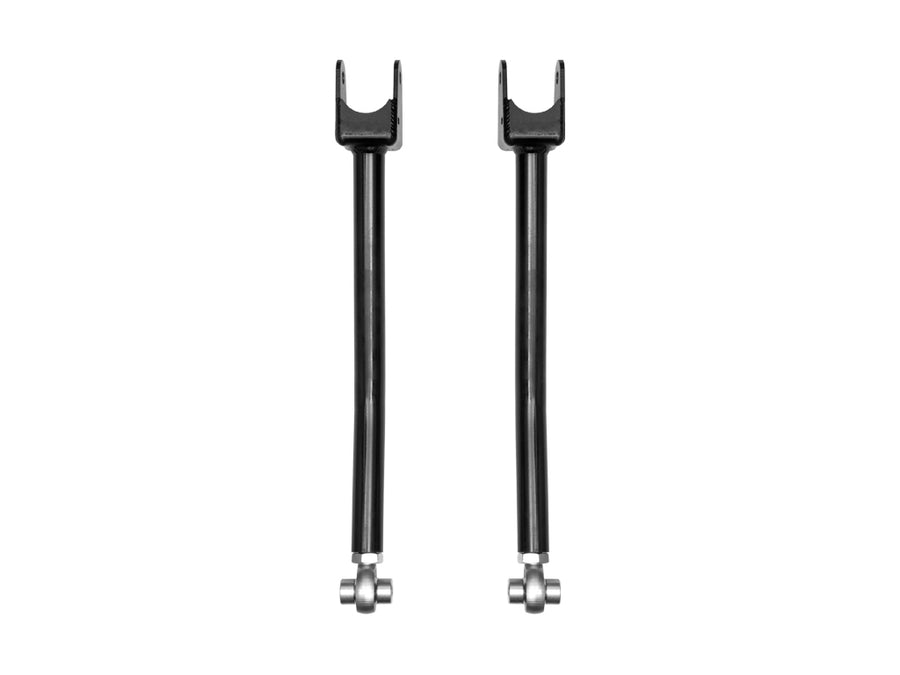

ICON 2018-2023 Jeep Wrangler JL/2020-2023 Jeep Gladiator JT Front Adjustable Upper Link Kit

ICON’s tubular steel front upper link arms are a significant upgrade over the factory units due to increases in strength, adjustability, and performance. These components are made from CNC machined 1026 DOM steel and welded in-house, providing a major improvement over the construction of the stock units. This front upper link arm kit features PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and link arm length adjustment. The quality rod ends featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. After the design phase was completed ICON engineers put these parts through the “ICON1K” real-world test cycle for a final stamp of approval.

• PTFE-lined rod end
• Adjustable in length for front caster angle adjustment
• Offers controlled deflection with maximum articulation and responsiveness
• Easy install into OEM mounts w/ application specific hardware
• High quality powder coat finish
• “ICON 1K” tested under rigorous off-road conditions to validate, performance, strength, and durability

Vehicle Specific

• ICON 18-23 JL/20-23 JT FRONT ADJ UPPER LINK KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103401294
• 30: Yes
• 40: Yes
• 73: Polyurethane
• 158: Tubular
• 2330: No
• 2339: No
• 2354: Performance
• 2371: Yes
• 2384: Yes
• 2386: Tubular
• 2389: Steel
• 3390: Performance
• 4888: Black
• 9617: Spring
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Adjustable Control Arm: yes
• Ball Joint Mounting Type: Thread in
• California Prop 65 Warning: Yes
• Color: Black
• Finish: Powdercoated
• Material: DOM Steel
• Quantity: Pair

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 30.0000 x 8.0000 x 4.0000 inches
• Weight: 18.0000 POUNDS
