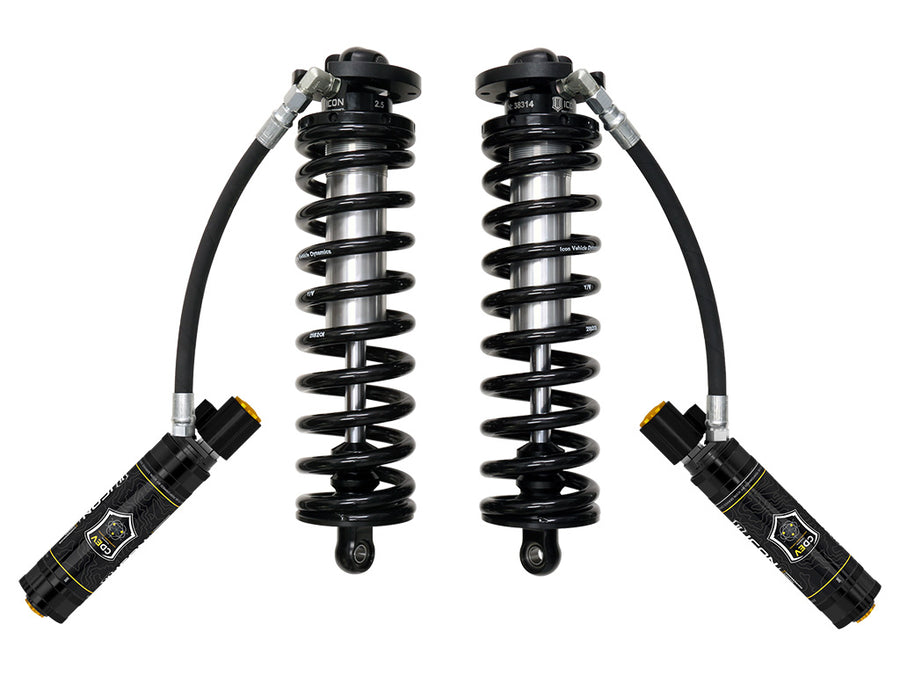

ICON 2017-2025 Ford F-250/F-350 Super Duty 4WD 4-5.5” Lift Front V.S. 2.5 Series Coilover Conversion Kit Remote Reservoir W/ CDEV

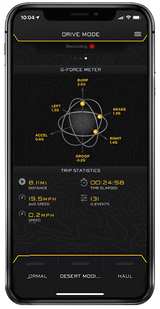

Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

• Bolt-in system fits in OE coil bucket location
• Fully rebuildable and re-tunable
• Ride height adjustable coilovers
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Coilover conversion allows for addition of optional secondary shocks
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• ICON engineered coil springs guaranteed for life against sagging or breakage
• FK Rod End bearings for extended longevity and minimal deflection

Vehicle Specific

• ICON 17-25 FSD 4WD 4-5.5" 2.5 VS RR CDEV BOLT IN CO CONVERSION KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103414447
• 306: Yes
• 2064: Steel
• 2329: Steel
• 3085: Single Tube
• 3096: Black
• 3390: Performance
• 7233: No
• 8703: No
• 9476: Yes
• 9783: Yes
• 10107: 400
• 10527: Yes
• 10528: Yes
• 10530: Active
• 10535: 5.5
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191207 - IIC CONTROLER ALT FUNCTION PLUG KIT
• Adjustable Damping: Yes
• Body Diameter: 2.5
• California Prop 65 Warning: Yes
• Coil Over Springs Included: Yes
• Compressed Length: 14.6
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Damping Adjustment Type: Electronic
• Damping Type: Oil
• Extended Length: 22.56
• Gas Charged: Yes
• Lower Mount Type: Eyelet
• Material: Aluminum
• Maximum Lift: 6.25
• Minimum Lift: 3.5
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
• Reservoir Style: Remote
• Self-Leveling: No
• Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Spring Rate Type: Linear
• Travel Length: 7.96
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 8.0000 inches
• Weight: 71.0000 POUNDS
