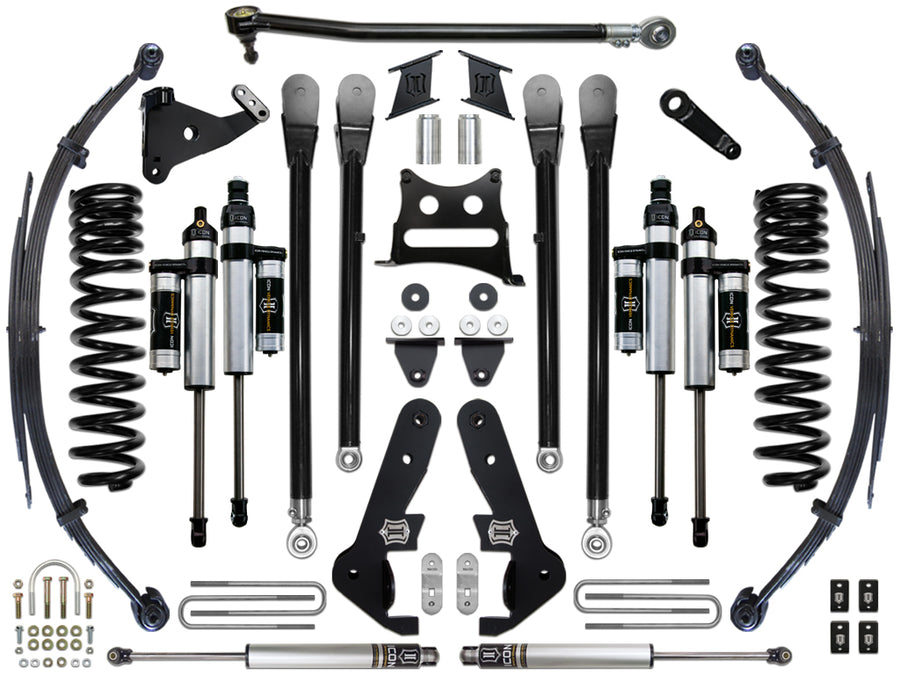

ICON 2017-2022 Ford F250/F350 7" Lift Stage 4 Suspension System

The Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty 4-Link kit, which further improves performance by eliminating suspension bind commonly experienced with factory radius arms during articulation. This “freeing up” of the front end and the ability of the 4-Link Kit to maintain positive caster through the range of travel equates to an unparalleled ride quality in all conditions. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured knowing that you have the best suspension solution on the market.

• Fits 2017-2022 F-250 / F-350 4WD applications
• Lifetime guarantee against coil spring breakage or sag
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• Approximately 50% increased front wheel travel over stock
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• Progressive leaf springs improve ride quality without reducing towing capacity
• ICON 4-Link system eliminates binding during articulation and maintains positive caster through the entire range of travel
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• Shocks are fully rebuildable and revalvable
• 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• FK Rod End bearings provide extended longevity and minimal deflection

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103418933
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 7
• 7325: 2
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• California Prop 65 Warning: Yes
• Dual Rate Coil Springs: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 66.0000 x 40.0000 x 16.0000 inches
• Weight: 600.0000 POUNDS

PDF:
