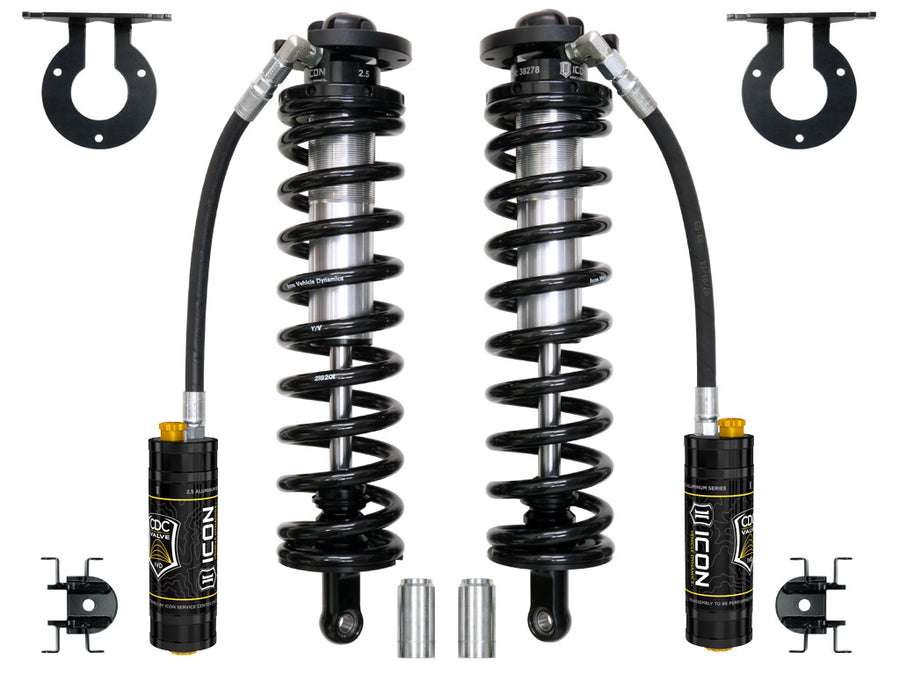

ICON 2005-2025 Ford F-250/F-350 Super Duty 4WD 4-5.5” Lift Front V.S. 2.5 Series Coilover Conversion Kit Remote Reservoir W/ CDCV

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2025 F-250 and F-350 Super Duty pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary. ICON's exclusive Compression Damping Control Valves ICON’s CDC (Compression Damping Control) Valve option adds to the adjustability of these coilover conversion kits, allowing the end-user to adjust the ride characteristics of the vehicle with the turn of a knob. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.

• Bolt-in system fits in OE coil bucket location
• FK Rod End bearings for extended longevity and minimal deflection
• Ride height adjustable coilovers for 4-5.5” of front lift over stock
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• Shocks are fully rebuildable and revalveable
• Coilover conversion allows for addition of secondary shock
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• ICON engineered coil springs guaranteed for life against sagging or breakage

Vehicle Specific

• ICON 05-25 FSD 4WD 4-5.5" 2.5 VS RR CDCV BOLT IN CO CONVERSION KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103405445
• 306: Yes
• 2064: Steel
• 2329: Steel
• 3085: Single Tube
• 3096: Black
• 3390: Performance
• 7233: No
• 8703: No
• 9476: Yes
• 9783: Yes
• 10107: 400
• 10527: Yes
• 10528: Yes
• 10530: Passive
• 10535: 5.5
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Adjustable Damping: Yes
• Body Diameter: 2.5
• California Prop 65 Warning: Yes
• Coil Over Springs Included: Yes
• Compressed Length: 14.6
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Damping Adjustment Type: Manual
• Damping Type: Oil
• Extended Length: 22.56
• Gas Charged: yes
• Lower Mount Type: Eyelet
• Material: Aluminum
• Maximum Lift: 5.5
• Minimum Lift: 4
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
• Reservoir Style: Remote
• Self-Leveling: No
• Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Spring Rate Type: Linear
• Travel Length: 7.96
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 70.0000 POUNDS
