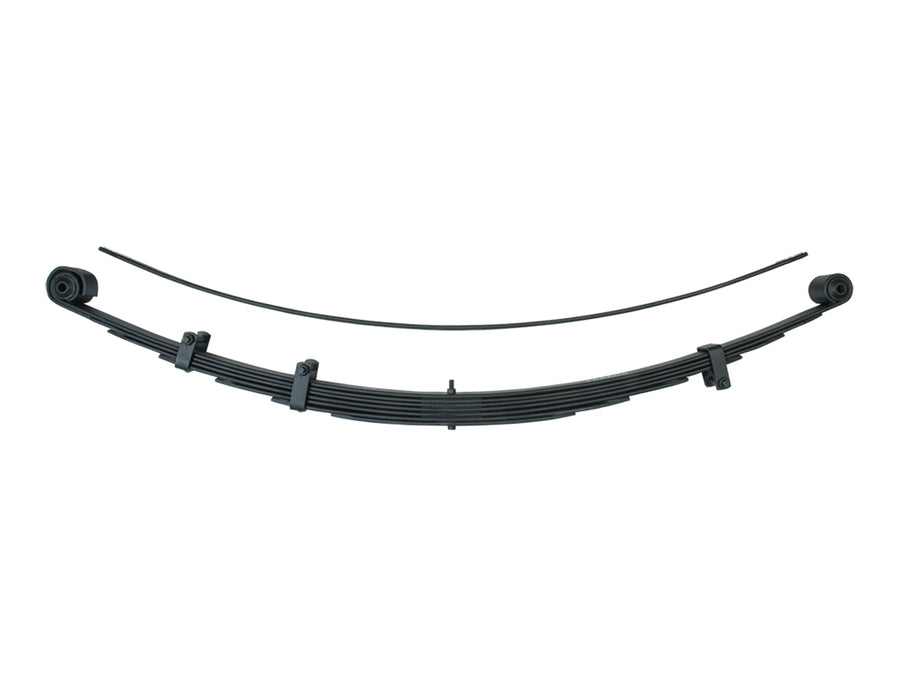

ICON 2005-2023 Toyota Tacoma Multi Rate RXT Leaf Spring Pack W/Add In Leaf

To take advantage of the additional travel that the RXT Rear Suspension System offers, ICON engineers had to scrap the OE leaf springs and develop a replacement that addressed issues found in the R&D process. The result is a user-adjustable multi-rate leaf pack that offers a major performance gain for almost every Tacoma setup imaginable. Features like tip inserts and leaf separators reduce friction and increase ride comfort, while a military wrapped front eyelet improves the durability and strength of the leaf spring. A slight reduction in spring rate increases ride quality while gaining additional droop travel. While many Tacoma owners will embrace this, there are those who have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires and parts or other additions. Understanding this, the leaf pack was designed with an additional leaf (included with kit) that can be exchanged or added to the pack yielding an additional 10% or 20% spring rate that will handle more "outfitted" vehicles.

• 3 user-adjustable spring rates for unique vehicle configurations
• Military wrap front eyelet for increased durability
• Galvanized leaf separators reduce friction and aid in corrosion resistance
• Leaf tip inserts reduce noise and increase ride comfort
• Includes additional leaf with 15% or 25% increase in spring rate for more laden "outfitted" vehicles
• Potential for increased wheel travel (when used with RXT shock) without sacrificing up-travel
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Direct bolt-in to OEM spring location makes for an easy install

Vehicle Specific

• ICON 05-23 TACOMA MULTI RATE RXT LEAF PACK W/ ADD IN LEAF

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103408767
• 10: Steel
• 17: Black
• 30: Yes
• 117: Black
• 2354: Performance
• 2368: No
• 2370: No
• 2371: Yes
• 3390: Performance
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 52050 - TOYOTA REAR 8.0" U-BOLT KIT
• Axle Orientation: Rear
• California Prop 65 Warning: Yes
• Leaf Quantity: 8
• Maximum Lift: 2.625
• U Bolts Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 48.0000 x 48.0000 x 10.0000 inches
• Weight: 70.0000 POUNDS
