ICON Vehicle Dynamics

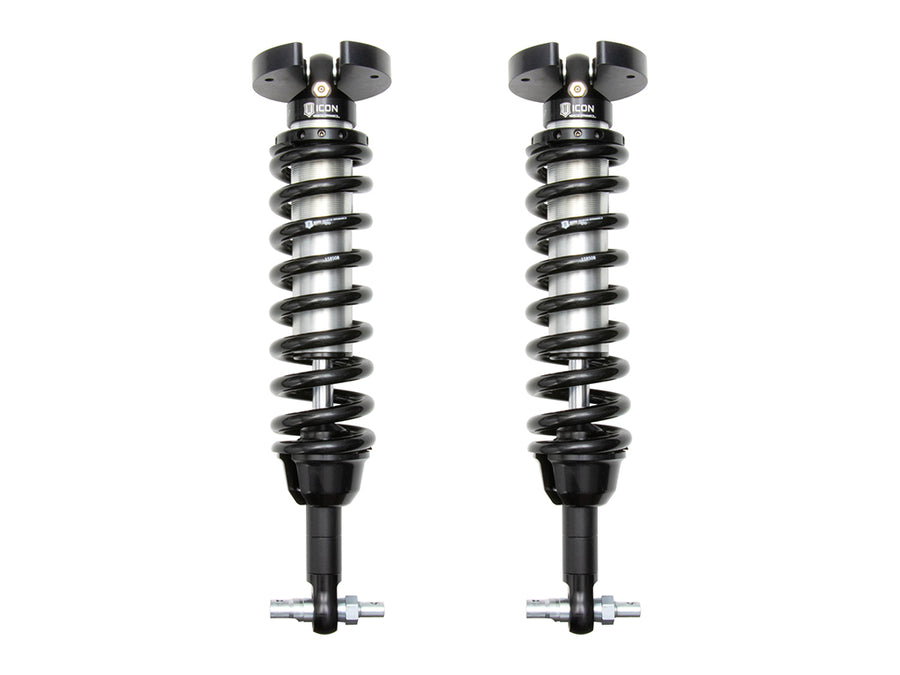

ICON 19-23 GM 1500 1.5-3.5” Lift Front 2.5 VS Extended Travel Coilover Kit
$2,020.15
Authorized dealer — genuine parts & manufacturer warranty
Free shipping on orders over $199 (lower 48 states)
Professional installation at our Burien shop — 206-774-2000
Finance with Sunbit — decisions in seconds, 3–24 months
Product Details
ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.
- Adjustable coilovers yield 1.5-3.5” of front lift height over stock
- Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
- Superior low speed control reduces body roll and increases on-road stability
- High quality ICON-engineered Eibach coil springs are guaranteed for life against sagging or breakage
- Corrosion resistant CAD plated shock body with 7/8" shaft
- Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
- Bolt-in design makes for an easy install into OEM shock location
- ICON 19-23 GM 1500 EXT TRAVEL 2.5 VS IR COILOVER KIT
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103406022
- 306: Yes
- 2064: Steel
- 2329: Steel
- 3085: Single Tube
- 3096: Black
- 3390: Performance
- 7233: No
- 8703: No
- 9783: Yes
- 10107: 700
- 10527: No
- 10528: Yes
- 10530: Passive
- 10535: 3.5
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
- Adjustable Damping: NO
- Body Diameter: 2.5
- California Prop 65 Warning: Yes
- Coil Over Springs Included: Yes
- Compressed Length: 17.97
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Damping Type: Oil
- Extended Length: 23.83
- Gas Charged: Yes
- Lower Mount Type: BAR PIN
- Material: Aluminum
- Maximum Lift: 3.5
- Minimum Lift: 1.5
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: (Sierra) 305/70R17 (Larger tires may fit but fender trimming and modifications will be required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Remote Reservoir: NO
- Reservoir Style: Internal
- Self-Leveling: No
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Flat on Bar Pin
- Spring Rate Type: Linear
- Travel Length: 5.87
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 27.0000 x 12.0000 x 6.0000 inches
- Weight: 51.0000 POUNDS
