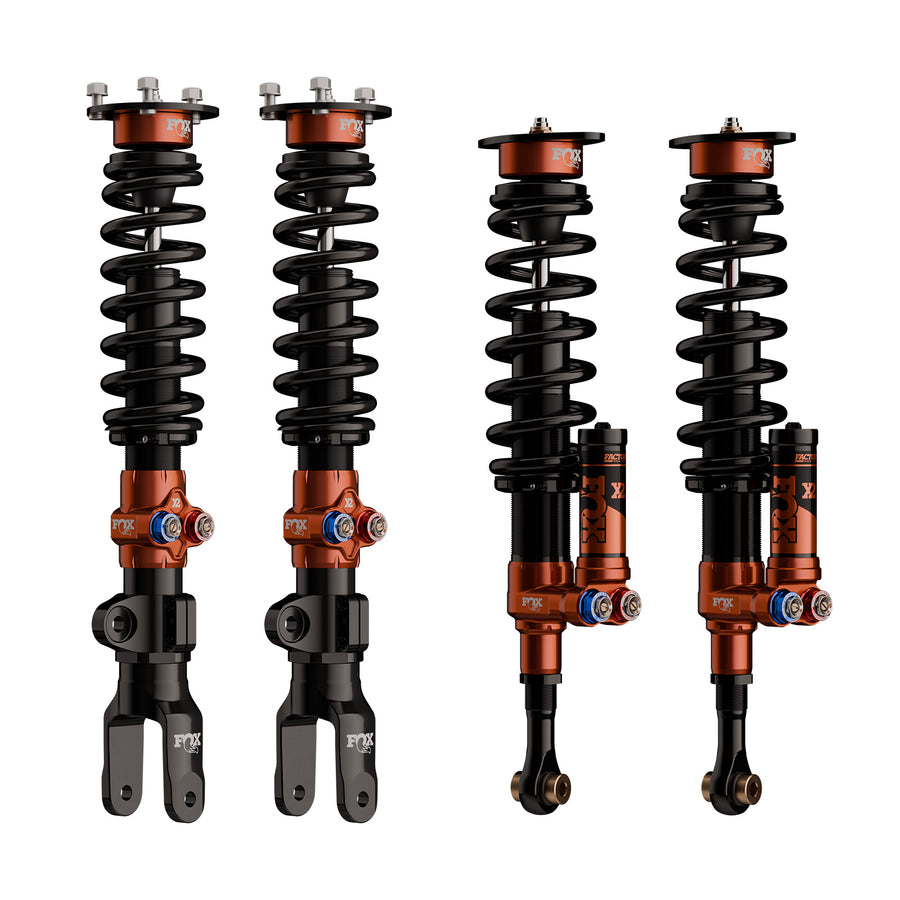

FACTORY RACE SERIES 2.0 COIL-OVER IFP SHOCK (KIT) - ADJUSTABLE

The Dodge Charger and Challenger are powerful, modern muscle cars with a prominent role in car culture. FOX Factory Race Series 2.0 X2 shocks dramatically improve the car as a performance-oriented daily driver with handling that’s adaptable to the track. TYPE III hard anodization prevents corrosion and wear of the 2.0-inch aluminum bodies. Converting the rear suspension to a coil-over improves the motion ration and makes ride height adjustments easy. The Factory Race Series kit accommodates 0.75-1.5” of lowering. External reservoirs increase oil capacity and decrease the harshness associated with nitrogen ramp-up. Our ride engineers spent considerable time testing the Dodge. We drove the car on the road and track, then optimized the shock valving for a variety of road textures to enhance vehicle balance. Fine-tune the vehicle’s damping with the 4-way adjuster, X2. Easily tune high-speed compression, high-speed rebound, low-speed compression, and low-speed rebound separately with 24 clicks each. The shock’s twin tube recirculating oil architecture coupled with X2 provides motorsport-level damping on the track, and 4-way adjustment allows for a comfortable drive home. The Charger and Challenger are comfortable and powerful muscle cars. With FOX, you can transform their ride dynamics to deliver a planted and stable ride through inconsistent pavement and track days.

• 2.0” impact-extruded and CNC-machined 6061-T6 TYPE III anodized aluminum body
• 5/8” hard chromed steel shafts
• Vehicle-specific tuning maximizes performance
• Patented rubber isolated spherical bearing
• Redundant sealing pack system: main seal, wiper seal, scraper seal
• External reservoir, with internal floating piston

Attributes:

• Brand Name: FOX Offroad Shocks
• GTIN: 00692878902496
• Adjuster Type: X2 DSC, DSR
• Body Diameter (in): 2.0
• Body Material: Aluminum
• Bottom Mount: Clevis(F)/Eyelet(R)
• Compressed Length (in): 21.35(F)/18.48(R)
• Extended Length (in): 25.33(F)/22.75(R)
• Fox Catalog: TRUCK
• Label Name: Kit: MY11-23 Dodge Charger/Challenger, 2.0 On-Road FRS, X2, DSC, DSR
• Reservoir Type: Internal Floating Piston (IFP)
• Series: Factory Race
• Top Mount: OEM(F/R)
• Travel (in): 3.98(F)/4.27(R)
• Type: Coil-Over
• Vehicle Ride Height Drop: 0.75"-1.5"

Extended Information:

• Country of Origin: US
• Emissions : 1

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 38.5000 x 19.3800 x 11.2500 inches
• Weight: 90.0000 POUNDS

PDF:
