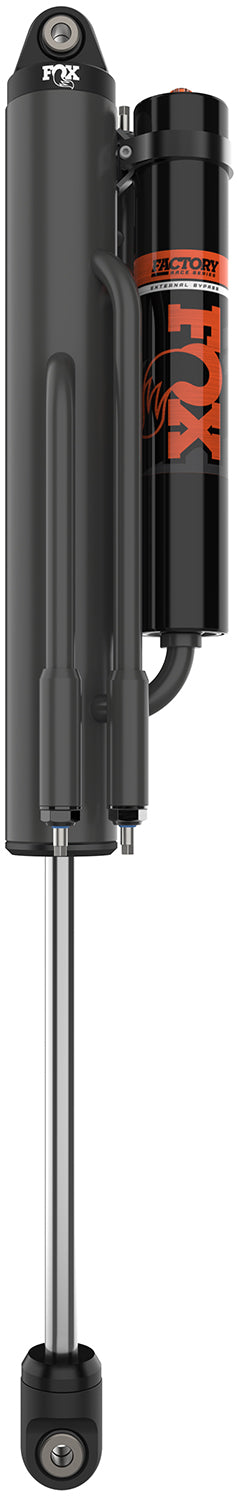

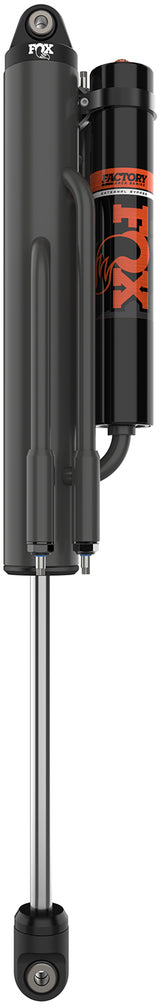

FACTORY RACE 3.0 X 16 EXTERNAL BYPASS (5 TUBE) PIGGYBACK SHOCK (RIGHT)

FOX External Bypass shocks have racked up countless wins across the globe over the past 30 years. There's no questioning whether they're race proven, but in the words of Bob Fox, "we're never done." In that spirit, we've reitalized our tried-and-true externally, adjustable position sensitive damping archtecture to deliver all-new standards of performance and durability, all while streamlining the production process.

• NEW proprietary Cerakote® protective ceramic coating over zinc plated basecoat
• 17-4 H900 hard chrome plated stainless steel shaft
• Owner serviceable and rebuildable
• JM92 MIL-SPEC oil developed specifically for off-road racing
• Black Anodized CNC Machined Aluminum Components

Attributes:

• Brand Name: FOX Offroad Shocks
• GTIN: 00692878903493
• Adjuster Type: External Bypass Clicker - Gen 2
• Body Diameter (in): 3
• Body Finish: FOX Grey Cerakote
• Body Material: Steel
• Bottom Mount: Eyelet
• Bypass Tube Size: 3/4
• Bypass Tubes: 5
• Compressed Length (in): 25.6
• Extended Length (in): 41.46
• Eyelet Length (in): 2
• Fox Catalog: OFFROAD
• Label Name: 3.0 FRS, EXBP, 5T, P/B, 16", RH
• Mounting: 1/2 x 1-1/2
• Reservoir Dimensions: 2.55 x 14.00
• Reservoir Type: Piggyback
• Seal Kit: 803-04-025
• Series: Factory Race
• Shaft Size (in): 7/8
• Top Mount: Eyelet
• Travel (in): 15.86
• Travel (rounded): 16
• Type: External Bypass
• Valving: 807-24-600

Extended Information:

• Country of Origin: US
• Emissions : 1

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 47.3100 x 11.6250 x 6.8700 inches
• Weight: 18.0000 POUNDS
