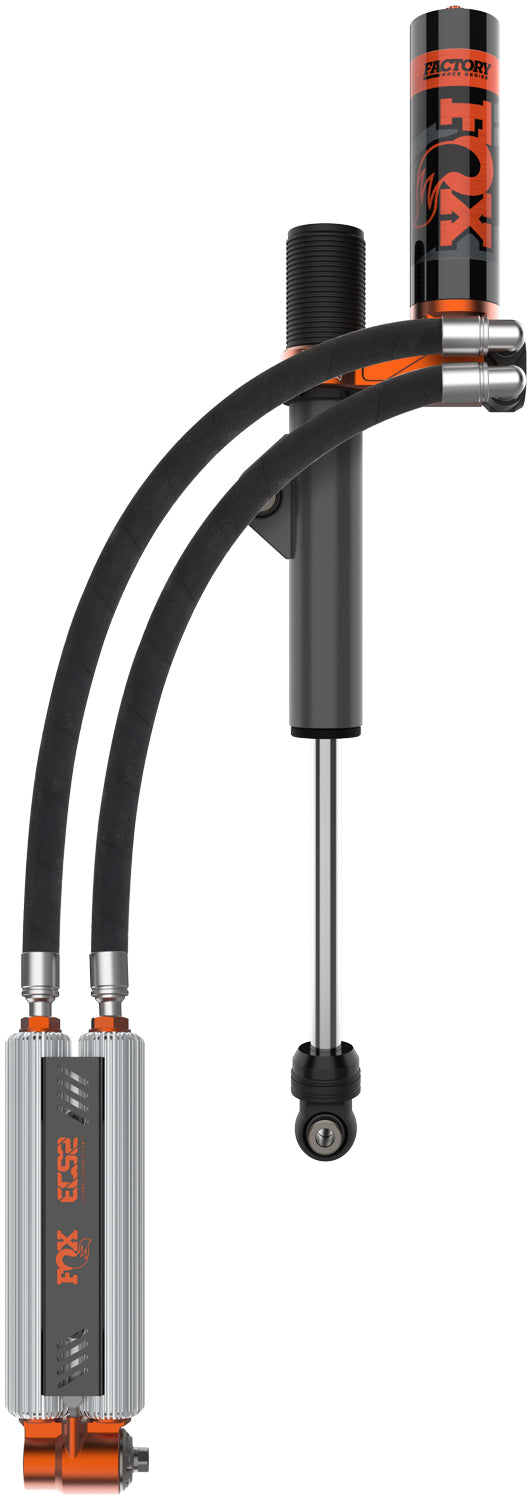

FACTORY RACE 2.0 X 9.4 SMOOTH BODY ECS2 PIGGYBACK SHOCK - CLASS 9/11 REAR (RIGHT)

FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.

• NEW proprietary Cerakote® protective ceramic coating over zinc plated basecoat
• External Cooling System 2 (ECS2)
• Owner serviceable and rebuildable
• JM92 MIL-SPEC oil developed specifically for off-road racing
• Orange and Black Anodized CNC Machined Aluminum Components

Attributes:

• Brand Name: FOX Offroad Shocks
• GTIN: 00692878899147
• Adjuster Type: DSC - Dual Speed Compression
• Body Diameter (in): 2.0
• Body Material: Aluminum
• Bottom Mount: Eyelet
• Compressed Length (in): 15.96
• Extended Length (in): 25.40
• Eyelet Length (in): 1.68
• Fox Catalog: OFFROAD
• Hose: -10 x 24.00
• Label Name: Class 11, Rear (Side Mount), 2.0 FRS, SB, P/B, ECS2, DSC, 9.4", Right
• Mounting: 1/2 x 1-1/2
• Reservoir Dimensions: 2.55 x 8.00
• Reservoir Type: Rotating Piggyback
• Series: Factory Race
• Shaft Size (in): 7/8
• Top Mount: Welded Side Mount
• Travel (in): 9.44
• Type: Smooth Body
• Valving: 807-24-058

Extended Information:

• Country of Origin: US
• Emissions : 1

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 47.0000 x 11.0000 x 6.0000 inches
• Weight: 10.0000 POUNDS
