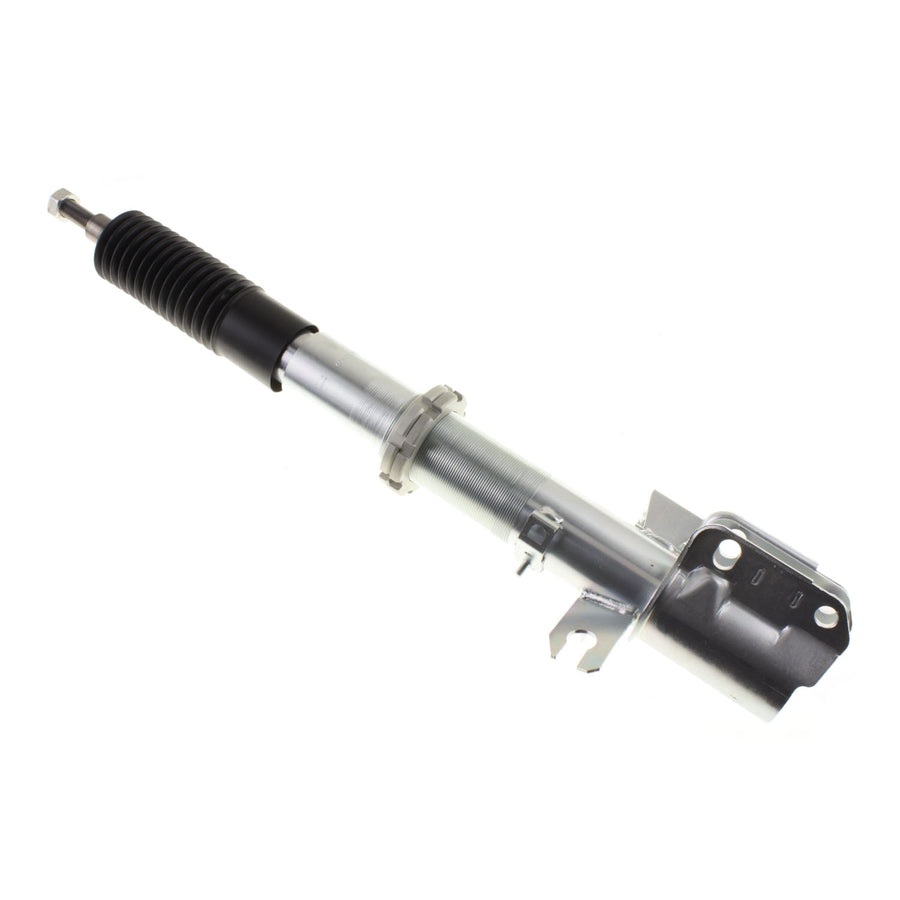

Bilstein Shock Absorbers

Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.

• Monotube design ensures consistent, fade-free performance in all conditions
• Larger working piston with deflective disc valving
• Available in steel and aluminum bodies

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860534343
• Adjustable Damping: Non-Adjustable
• Body Design: Threaded Body (Coilover)
• Body Material: Steel
• Boot Included: Black Bellows
• Collapsed Length (IN): 16.61
• Collapsed Length (MM): 422.0
• Extended Length (IN): 21.52
• Extended Length (MM): 546.5
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Bracket
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Piston Type: Digressive
• Position: Front
• Segment: Motorsports
• Series: Motorsports
• Shaft Diameter: 11mm
• Spring Hardware: N/A
• Spring Seat Included: Yes
• Stroke/Travel Length (IN): 4.90
• Stroke/Travel Length (mm): 124.5
• Upper Mount Type: Stem
• Valving Identifier: N/A

Extended Information:

• Country of Origin: DE
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 6.1000 x 6.1000 inches
• Weight: 10.1000 POUNDS
