Bilstein Shock Absorbers

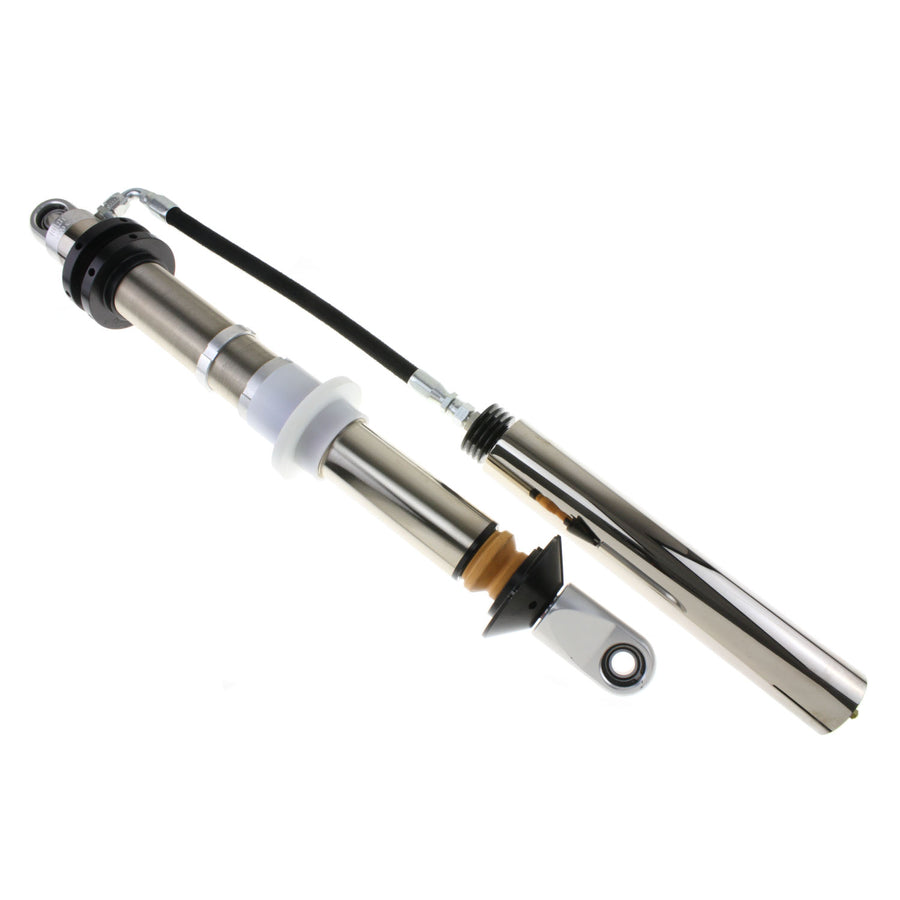

Bilstein M 9300 (Coilover) off-road racing shock absorbers are filled with the technology perfected over 3 decades of off-road dominance. Bilstein's monotube gas pressure design maximizes heat dissipation for increased shock life, and decreases oil foaming to prevent performance loss while under extreme working conditions. Available for lifted truck, custom truck, rock crawling and off-road racing applications.

• Available in 46mm and 60mm monotubes
• Threaded body with dual rate coilover hardware
• 5/8" uniball mounts with 1/2" step spacers

Attributes:

• Brand Name: Bilstein
• GTIN: 00790832528338
• Body Design: 60mm ID Threaded Body Screw Top (Coilover)
• Boot Included: No
• Collapsed Length (IN): 28.68
• Collapsed Length (MM): 728.5
• Compression: Custom
• Extended Length (IN): 45.08
• Extended Length (MM): 1145.0
• Finish: Electroless Nickel
• Internal Design: Monotube
• Lower Mount Type: 3/4in Heim
• PartType: Shocks / Struts
• Rebound: Custom
• Reservoir: Yes
• Segment: Motorsports
• Series: M 9300 (Coilover)
• Shaft Diameter: 22mm
• Spring Seat Included: Yes
• Stroke/Travel Length (IN): 16.40
• Stroke/Travel Length (mm): 416.6
• Upper Mount Type: 3/4in Heim

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 38.2500 x 16.7500 x 9.7500 inches
• Weight: 22.5000 POUNDS
