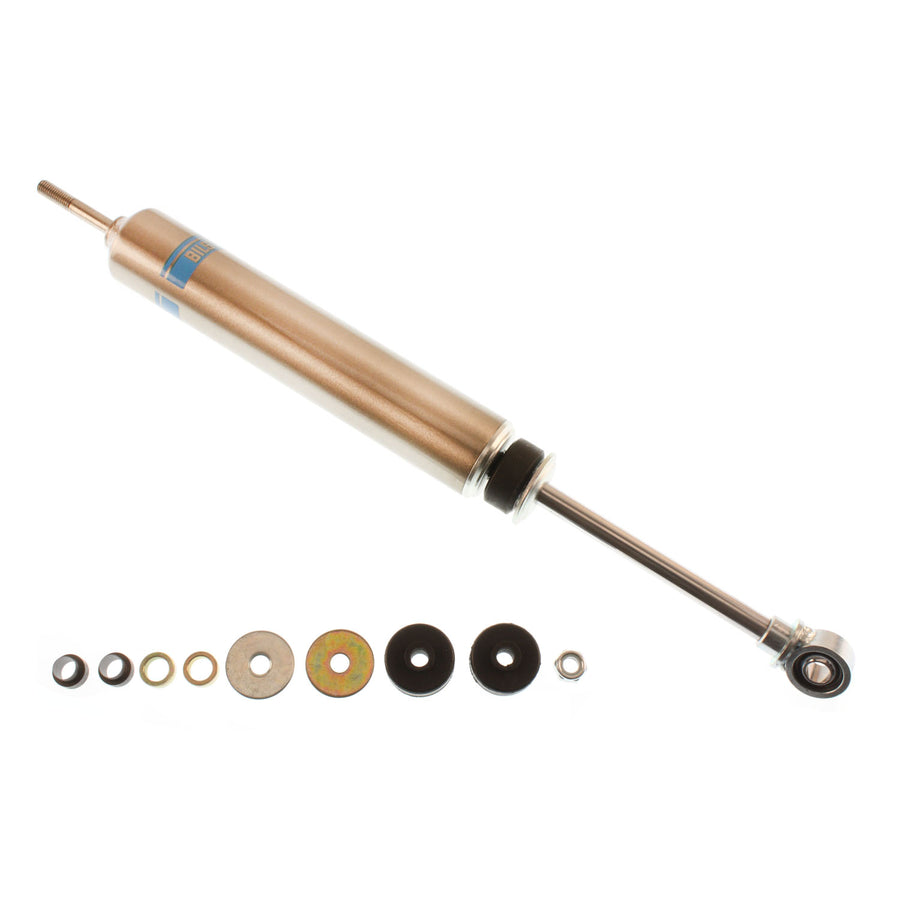

Bilstein Shock Absorbers

Bilstein M 7100 Classic shock absorbers are the most successful shock absorbers in off-road racing history. Since their inception in the early 70's, these 46mm monotube shock absorbers are equipped on more winning off-road cars and trucks than any other shock absorber. Today, the M 7100 Classic shock absorbers are perfect for meeting the demands of vintage off road race cars and VW based off-road recreational vehicles. Withstanding the test of time, the M 7100 Classic shock absorber will deliver period correct performance.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Available for standard and coilover applications in a wide variety of lengths
• Self-adjusting deflective disc valving

Vehicle Specific

• No Applications

Attributes:

• Brand Name: Bilstein
• GTIN: 00790832512252
• Body Design: Smooth Body (Non-Coilover)
• Collapsed Length (IN): 12.15
• Collapsed Length (MM): 308.6
• Compression @0.52m/s: 1150
• Extended Length (IN): 18.74
• Extended Length (MM): 476.0
• Finish: Nickel Plated with Clear Powder Coat
• Internal Design: Monotube
• Lower Mount Type: 12mm Heim
• Mount Type: Stem-to-Eye
• Optional Reservoir Clamp: N/A
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Rebound @0.52m/s: 2200
• Reservoir: No
• Segment: Motorsports
• Series: M 7100 Classic
• Shaft Diameter (mm): 11.0
• Spring Seat Included: No
• Stroke/Travel Length (IN): 6.59
• Stroke/Travel Length (mm): 167.4
• Upper Mount Type: Stem

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.0000 x 2.7500 x 2.5000 inches
• Weight: 4.3000 POUNDS
