Bilstein Shock Absorbers

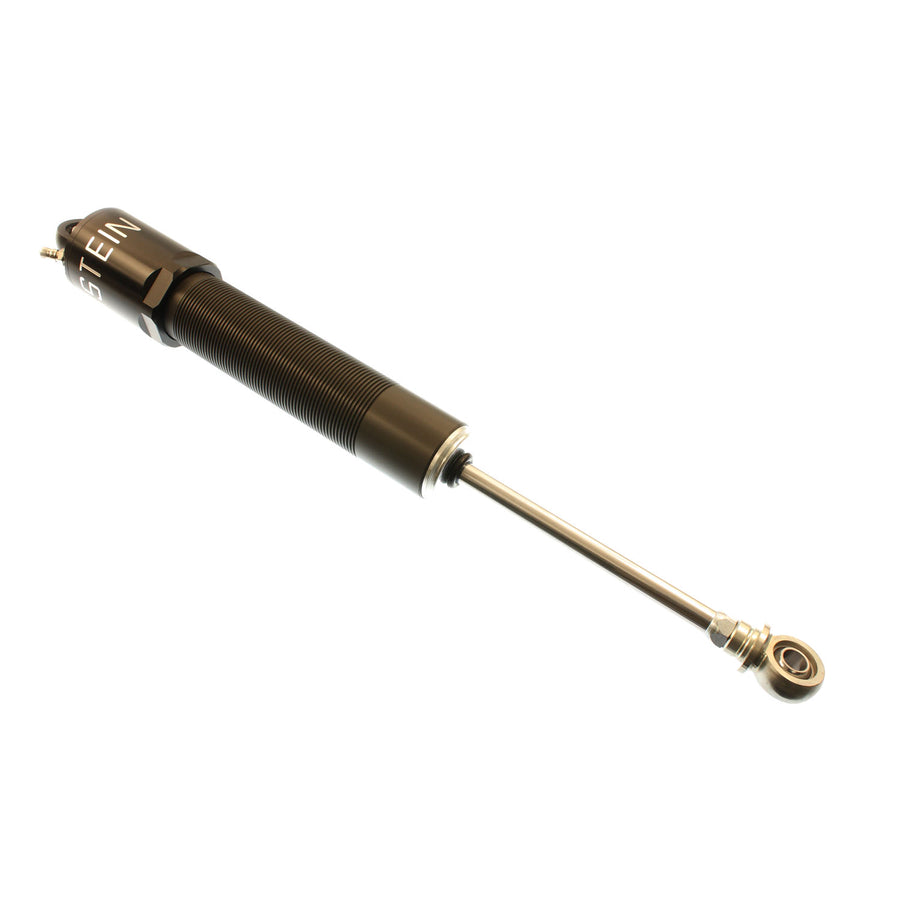

Bilstein BGT (Big Gas Threaded) shock absorbers are 46mm aluminum body monotube shocks designed for, but not limited to, Late Models, Super Late Models, Sprint Cars, Dirt Late Models, and Big Block Modified. These shocks feature a large 60mm nitrogen compartment that reduces rod pressure and keeps the nitrogen pressure more consistent during heat changes. The BGT shock absorbers are hard anodized with coarse threads on the shock body for added strength and ease of coil spring height adjustment. They are available with or without the BGT base valve and are completely racer rebuildable and revalvable. Optional adjustable shafts are available, as well as composite wear sleeves to protect the shock tube.

• 46mm aluminum monotube design ensures consistent, fade-free performance in all conditions
• Designed for Late Models, Super Late Models, Sprint Cars, Dirt Late Models, and Big Block Modified
• 60mm nitrogen compartment that reduces rod pressure

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860564272
• Boot Included: No
• Collapsed Length (IN): 15.67
• Collapsed Length (MM): 398.0
• Compression: Custom
• Extended Length (IN): 22.60
• Extended Length (MM): 574.0
• Finish: Clear Anodized
• Internal Design: Monotube
• Lower Mount Type: Eye 12.7mm
• PartType: Shocks / Struts
• Rebound: Custom
• Segment: Motorsports
• Series: BGT Series
• Upper Mount Type: Eye 12.7mm

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 4.6300 POUNDS
