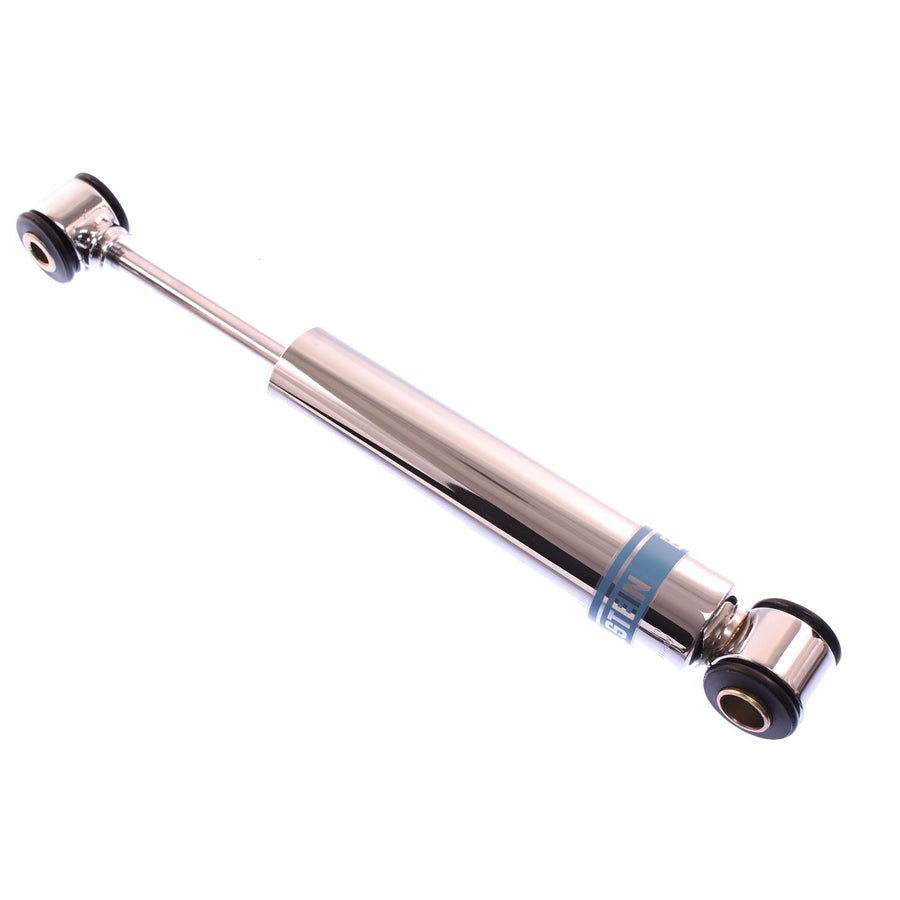

Bilstein Shock Absorbers

Bilstein SS4 Series shock absorbers are designed specifically for custom street rod applications that require unique lengths and valve settings for the proper chassis setup. SS4 Series shock absorbers feature a 36mm piston, smooth body, 5/8 inch polyurethane bushing mounts and various lengths and valve settings to choose from. SS4 Series shock absorbers provide a wide range of options to support any custom street rod application need.

• Designed specifically for custom street rod applications that require unique lengths and valve settings for the proper chassis setup
• SS4 Series shock absorbers feature a 36mm piston, smooth body, 5/8 inch polyurethane bushing mounts and various lengths and valve settings to choose from
• SS4 Series shock absorbers provide a wide range of options to support any custom street rod application need

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860597119
• Boot Included: No
• Collapsed Length (IN): 9.37
• Collapsed Length (MM): 238.0
• Compression @0.52m/s: 695
• Extended Length (IN): 13.26
• Extended Length (MM): 336.8
• Finish: Chrome Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 15.9mm
• PartType: Shocks / Struts
• Rebound @0.52m/s: 1310
• Segment: Tuning
• Series: SS4 Series
• Spring Seat Included: No
• Upper Mount Type: Eye 11.2mm

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 22.4500 x 2.9500 x 2.9500 inches
• Weight: 2.5200 POUNDS
