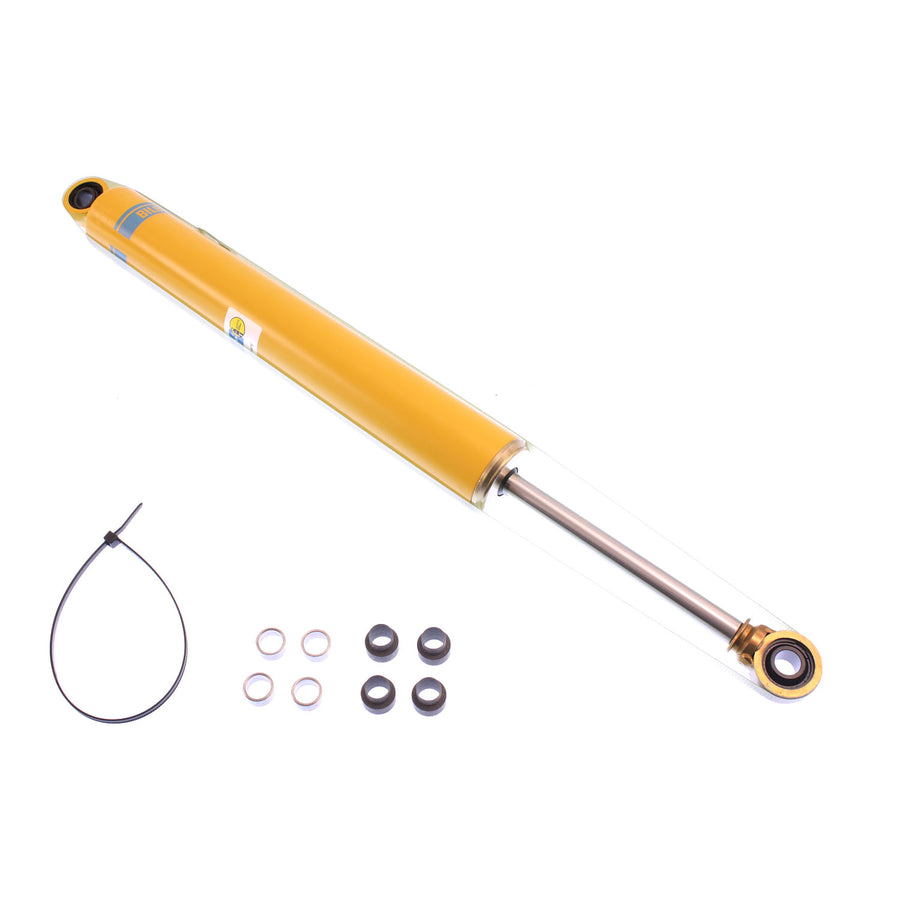

Bilstein Shock Absorbers

Bilstein B8 6100 shock absorbers are filled with the technology perfected over 3 decades of off-road dominance. Bilstein's monotube gas pressure design maximizes heat dissipation for increased shock life, and decreases oil foaming to prevent performance loss while under extreme working conditions. Available for lifted truck, custom truck, rock crawling and off-road racing applications.

• Large 60mm body for increased oil capacity, cooling, and long-term durability
• 60mm digressive piston improves ride comfort and control over rough terrain
• Vehicle specific tuning

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860420745
• Body Design: 46mm ID Smooth Body (Non-Coilover)
• Boot Included: No
• Collapsed Length (IN): 14.06
• Collapsed Length (MM): 357.0
• Compression @0.52m/s: 980
• Extended Length (IN): 22.05
• Extended Length (MM): 560.0
• Finish: Yellow Paint
• Internal Design: Monotube
• Lower Mount Type: 1/2in Heim
• PartType: Shocks / Struts
• Rebound @0.52m/s: 2710
• Reservoir: No
• Segment: Motorsports
• Series: B8 6100
• Shaft Diameter: 14mm
• Spring Seat Included: No
• Stroke/Travel Length (IN): 7.99
• Stroke/Travel Length (mm): 203.0
• Upper Mount Type: 1/2in Heim

Extended Information:

• Country of Origin: Germany
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 4.3700 POUNDS
