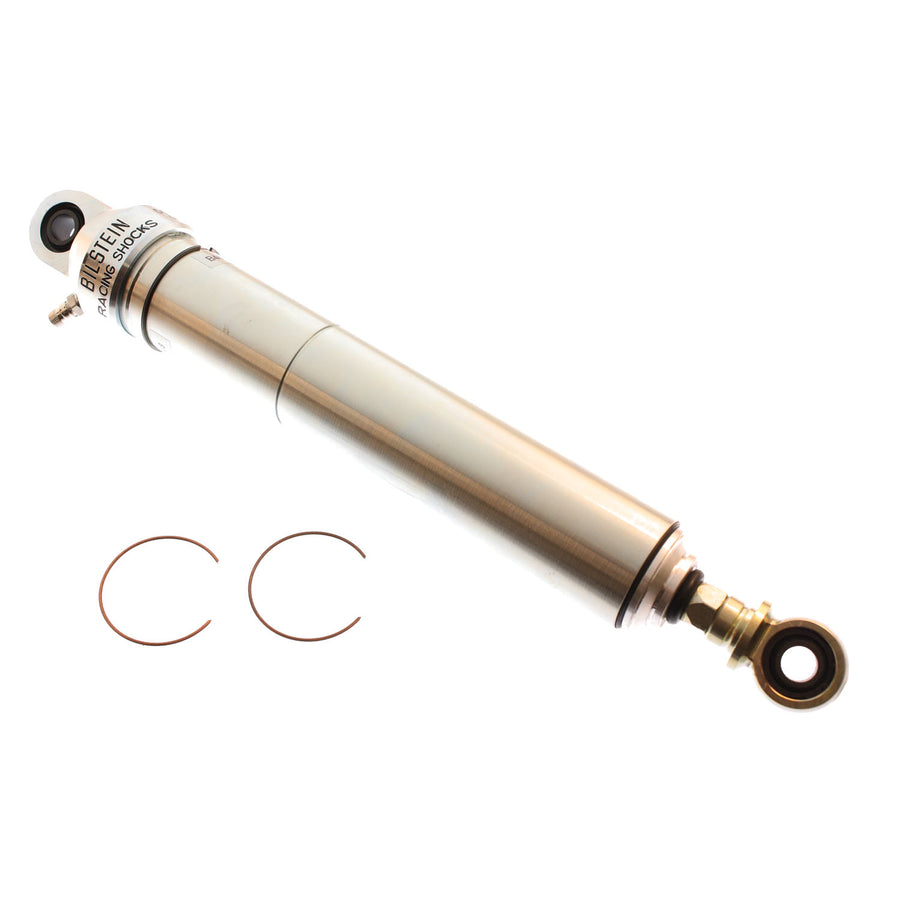

Bilstein Shock Absorbers

Bilstein SNS Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are rebuildable for easy repair and valve setting changes, and can be converted to a coilover (kit sold separately). SNS Series shock absorbers are available in multiple lengths and are ideal for racers whose sanctioning bodies require an all steel construction with rebuild capability.

• Plated steel body for durability and superior heat dissipation
• 46mm piston design for maximum damping control
• Standard 1/2” graphite heims

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860720418
• Boot Included: No
• Collapsed Length (IN): 12.42
• Collapsed Length (MM): 315.4
• Compression: Custom Digressive
• Extended Length (IN): 18.13
• Extended Length (MM): 460.5
• Finish: Nickel Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 12.7mm
• PartType: Shocks / Struts
• Rebound: Custom Digressive
• Segment: Motorsports
• Series: SNS Series
• Spring Seat Included: No
• Upper Mount Type: Eye 12.7mm

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.0000 x 2.7500 x 2.5000 inches
• Weight: 3.8000 POUNDS
