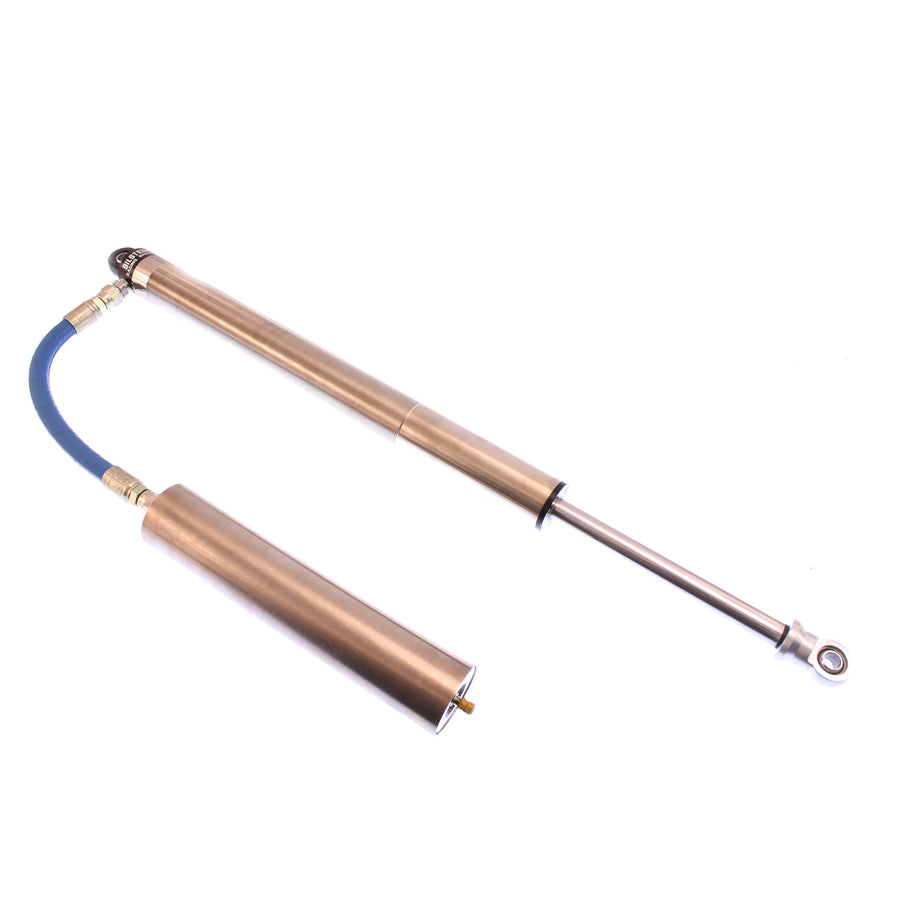

Bilstein Shock Absorbers

Bilstein M 9100 (Rock Crawler) off-road racing shock absorbers are filled with the technology perfected over 3 decades of off-road dominance. Bilstein's monotube gas pressure design maximizes heat dissipation for increased shock life, and decreases oil foaming to prevent performance loss while under extreme working conditions. Available for lifted truck, custom truck, rock crawling and off-road racing applications.

• Filled with technology perfected over 3 decades of off-road dominance
• Monotube gas pressure design maximizes heat dissipation
• Available for lifted truck, custom truck, rock crawling and off-road racing applications

Attributes:

• Brand Name: Bilstein
• GTIN: 00790832526945
• Body Design: Threaded Body Screw Top (Coilover)
• Collapsed Length (IN): 26.22
• Collapsed Length (MM): 666.0
• Compression @0.52m/s: Custom
• Extended Length (IN): 43.36
• Extended Length (MM): 1101.3
• Finish: Nickel Plated
• Internal Design: Monotube
• Lower Mount Type: 1/2in Heim
• Mount Type: Eye-to-Eye
• Optional Reservoir Clamp: N/A
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Rebound @0.52m/s: Custom
• Reservoir: Yes
• Segment: Motorsports
• Series: M 9100 (Rock Crawler)
• Shaft Diameter (mm): 22.0
• Spring Seat Included: No
• Stroke/Travel Length (IN): 17.14
• Stroke/Travel Length (mm): 435.4
• Upper Mount Type: 1/2in Heim

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 38.2500 x 16.7500 x 9.7500 inches
• Weight: 12.0000 POUNDS
