Bilstein Shock Absorbers

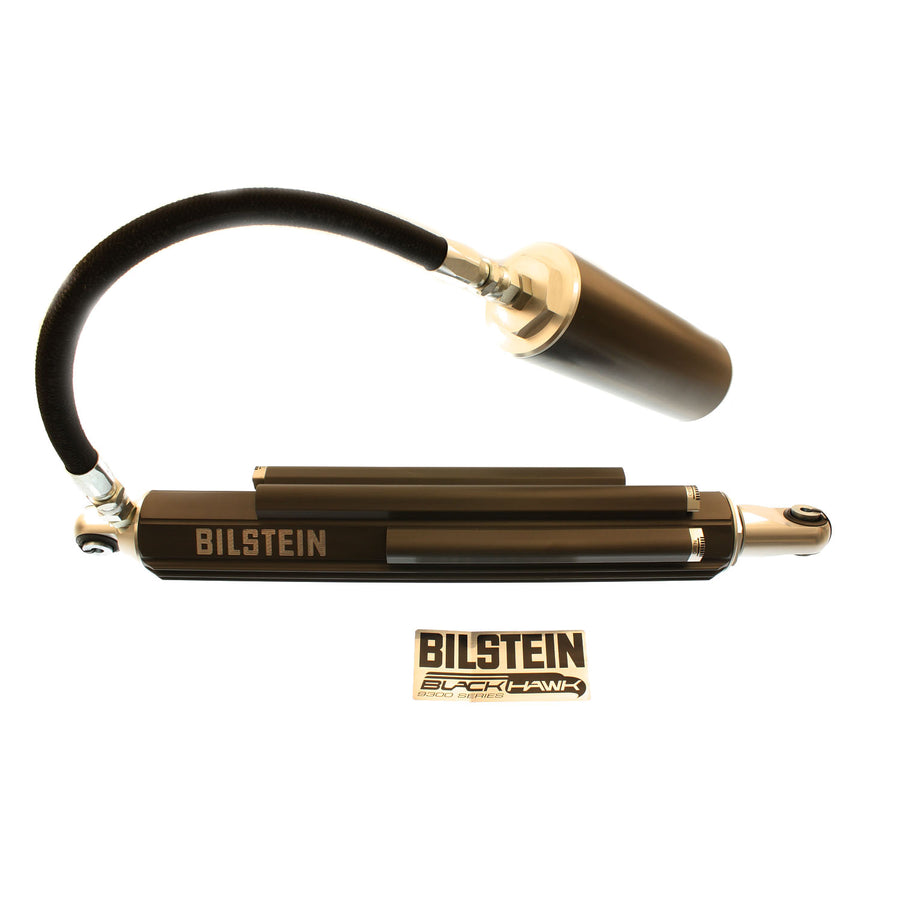

Bilstein M 9300 Black Hawk shock absorbers are a position sensitive, adjustable bypass shock absorbers designed for off-road motorsports applications. Based on an aluminum extrusion, the hard anodized shock body will dissipate heat 30% faster than a steel body shock absorber. M 9300 Black Hawk shock absorbers use 4 IFMV’s (Incremental Bypass Flow Metering Valve), with 10 adjustable positions to perfectly adjust the rebound and compression damping. M 9300 Black Hawk shock absorbers utilize a 3 inch ID piston bore and an ACV (Anti-Cavitiation Valve), which is housed in a 4.5 inch OD remote reservoir. The ACV allows the shock absorber to operate with much lower gas pressure to eliminate oil cavitation. With the ACV, M 9300 Black Hawk shock absorbers can fully function at 70-90 PSI which improves the overall durability and comfort. These shock absorbers are completely owner rebuildable and revalvable with service parts readily available. M 9300 Black Hawk shock absorbers will provide the most advanced technology found in an off-road racing shock absorber today.

• One piece 6061 extruded aluminum body with hard anodized finish
• 30% faster heat dissipation
• 10% - 25% lighter than similar welded bypass steel shocks

Attributes:

• Brand Name: Bilstein
• GTIN: 00790832526754
• Body Design: 4-Tube Bypass Screw Top
• Collapsed Length (IN): 28.75
• Collapsed Length (MM): 730.3
• Compression @0.52m/s: Custom
• Extended Length (IN): 46.75
• Extended Length (MM): 1187.5
• Finish: Clear Hard Anodized
• Internal Design: Monotube
• Lower Mount Type: 3/4in Heim
• Mount Type: Eye-to-Eye
• Optional Reservoir Clamp: N/A
• PartType: Shocks / Struts
• Piston Diameter: 76mm
• Rebound @0.52m/s: Custom
• Reservoir: Yes
• Segment: Motorsports
• Series: M 9300 Black Hawk
• Shaft Diameter (mm): 28.6
• Spring Seat Included: No
• Stroke/Travel Length (IN): 18.00
• Stroke/Travel Length (mm): 457.2
• Upper Mount Type: 3/4in Heim

Extended Information:

• Country of Origin: United States
• Emissions : 4

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 38.2500 x 16.7500 x 9.7500 inches
• Weight: 30.0500 POUNDS
