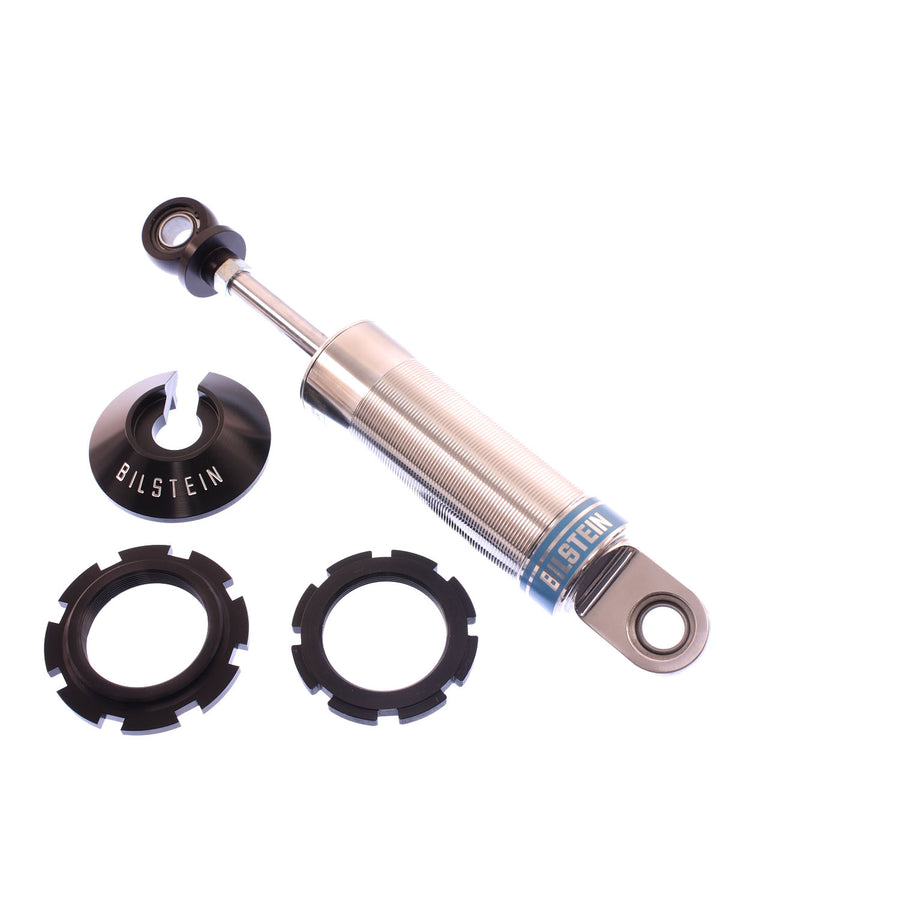

Bilstein Shock Absorbers

Bilstein CA5 Series shock absorbers are designed specifically for custom street rod applications that require unique lengths and valve settings for the proper chassis setup. Built around a billet aluminum monotube design, these shock absorbers feature a 46mm piston, threaded body, 5/8 inch spherical rod end mounts and various lengths and valve settings to choose from. Each shock absorber is supplied with a hard anodized spring seat, lock ring, and hat to accommodate a 2.5 inch ID spring. Bilstein CA5 Series shock absorbers provide a wide range of options to support any custom street rod application need.

• Designed specifically for custom street rod applications that require unique lengths and valve settings for the proper chassis setup
• Built around a billet aluminum monotube design, these shock absorbers feature a 46mm piston, threaded body, 5/8 inch spherical rod end mounts and various lengths and valve settings to choose from
• Each shock absorber is supplied with a hard anodized spring seat, lock ring, and hat to accommodate a 2.5 inch ID spring

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860597263
• Boot Included: No
• Collapsed Length (IN): 9.25
• Collapsed Length (MM): 235.0
• Compression @0.52m/s: 720
• Extended Length (IN): 11.95
• Extended Length (MM): 303.5
• Finish: Polished Aluminum
• Internal Design: Monotube
• Lower Mount Type: 15.9mm Heim
• PartType: Shocks / Struts
• Position: Front
• Rebound @0.52m/s: 1300
• Recommended Mounting Length (IN): 10.50
• Segment: Tuning
• Series: CA5 Series
• Spring Seat Included: Yes
• Upper Mount Type: 15.9mm Heim

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 19.7500 x 5.2500 x 2.7500 inches
• Weight: 4.9700 POUNDS
