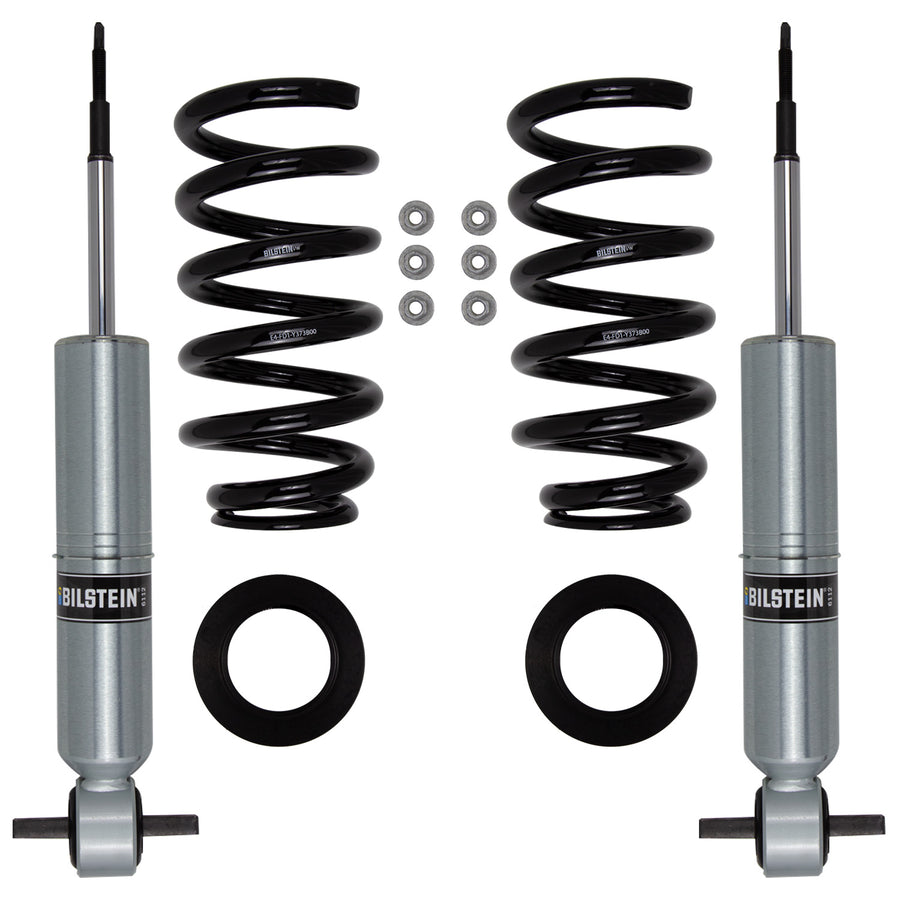

Bilstein Shock Absorbers

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

• Large 60mm body for increased oil capacity, cooling, and long-term durability
• 60mm digressive piston improves ride comfort and control over rough terrain
• Vehicle specific tuning

Vehicle Specific

• Chevrolet Silverado 1500 2014-2018, Silverado 1500 LD 2019, GMC Sierra 1500 2014-2018, Sierra 1500 Limited 2019

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860919690
• Adjustable Damping: Non-Adjustable
• Aftermarket Upper Arms Required: Yes
• Body Design: Snap Ring Grooved Body (Coilover)
• Boot Included: No
• Collapsed Length (IN): 14.96
• Collapsed Length (mm): 380.0
• Extended Length (IN): 19.65
• Extended Length (mm): 499.1
• Finish: Dampers: Zinc Plated/Springs: Black
• Front Main Spring Rate (lbs/in): 750
• Internal Design: Monotube
• PartType: Suspension Kit
• Piston Diameter: 60mm
• Reservoir: No
• Segment: Light Truck
• Series: B8 6112
• Shaft Diameter: 18mm
• Spring Seat Included: Yes
• Stroke/Travel Length (IN): 4.69
• Stroke/Travel Length (mm): 119.1

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.7500 x 11.0000 x 8.4400 inches
• Weight: 54.6500 POUNDS
