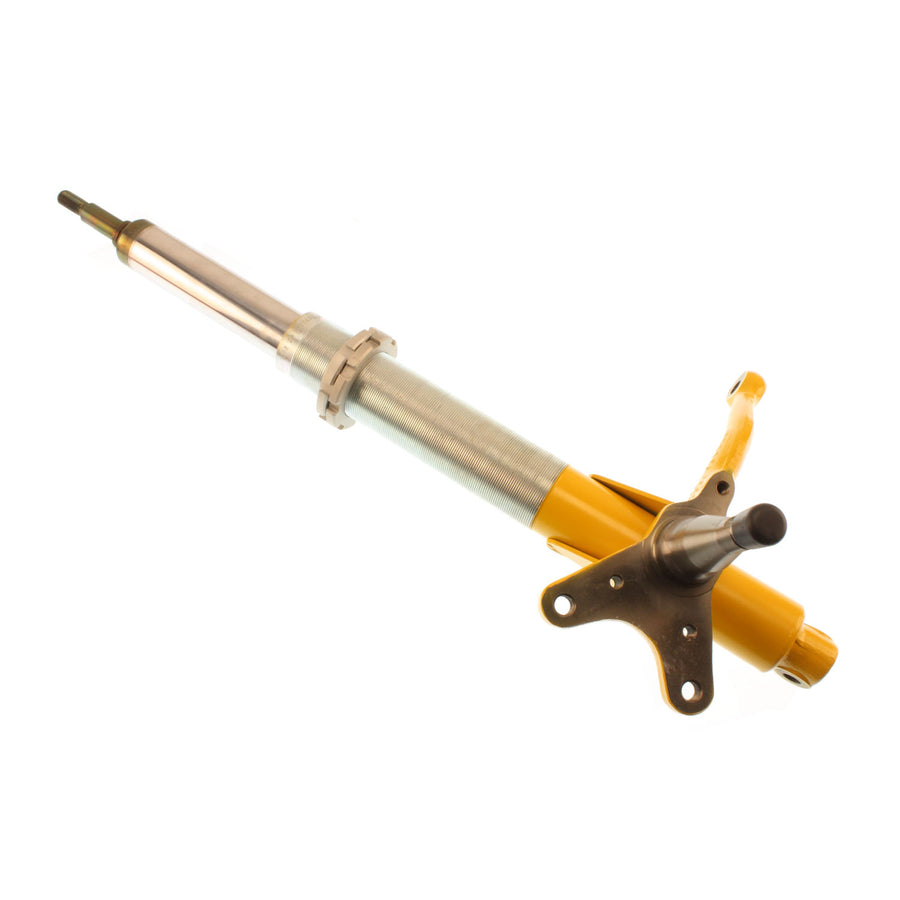

Bilstein Shock Absorbers

Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.

• Monotube design ensures consistent, fade-free performance in all conditions
• Larger working piston with deflective disc valving
• Available in steel and aluminum bodies

Vehicle Specific

• Porsche 911 1965-1989, 912 1965-1969, 912 1976, 930 1978-1979

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860550039
• Adjustable Damping: Non-Adjustable
• Body Design: Threaded Body (Coilover)
• Body Material: Steel
• Boot Included: No
• Collapsed Length (IN): 18.23
• Collapsed Length (MM): 463.0
• Compression @0.52m/s: 1600
• Extended Length (IN): 22.95
• Extended Length (MM): 583.0
• Finish: Yellow Paint
• Internal Design: Monotube
• Lower Mount Type: Special
• PartType: Shocks / Struts
• Piston Diameter: 36mm
• Piston Type: Linear
• Position: Front Left
• Rebound @0.52m/s: 1610
• Segment: Motorsports
• Series: Motorsports
• Shaft Diameter: 11mm
• Spring Hardware: N/A
• Spring Seat Included: Yes
• Stroke/Travel Length (IN): 4.72
• Stroke/Travel Length (mm): 119.9
• Upper Mount Type: Stem

Extended Information:

• Country of Origin: Germany
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 30.3000 x 11.0000 x 8.2500 inches
• Weight: 13.4000 POUNDS
