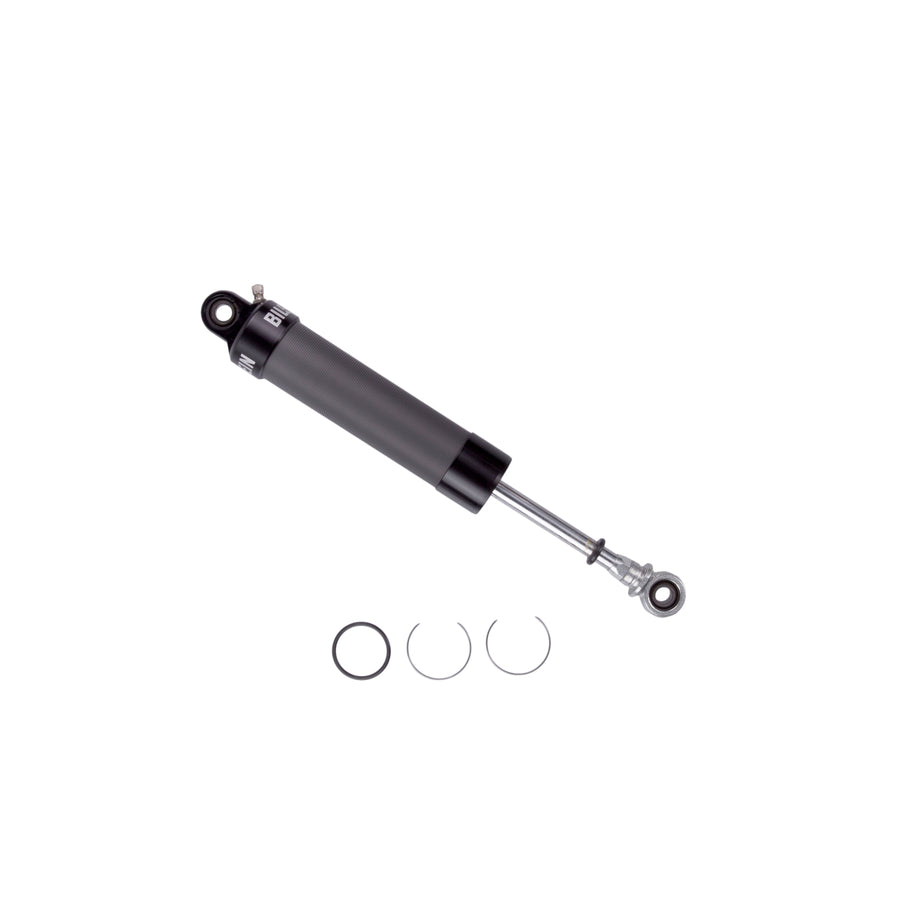

Bilstein Shock Absorbers

Bilstein AS2 Series shock absorbers are designed for motorsports applications and provide the user with the option to rebuild them. The modular aluminum design is offered in non-, single and double adjustable configurations which provide superior on-vehicle tuning capabilities. The threaded body provides precise height adjustments for coilover setups and dissipates heat quickly. The hard anodized coating reduces internal friction and improves strength and durability (pistons, piston bands and heims are sold separately to allow for a variety of combinations). AS2 Series shock absorbers are ideal for racers demanding a lightweight design with upgrade capability.

• 46mm lightweight extruded aluminum body for superior heat dissipation
• Fine thread body provides precise adjustments in coilover applications
• Single and double adjustable shaft options available

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860760308
• Adjustable Damping: Non-Adjustable
• Body Design: Threaded Body Screw Top (Coilover)
• Body Material: Aluminum
• Boot Included: No
• Collapsed Length (IN): 11.00
• Collapsed Length (MM): 279.4
• Extended Length (IN): 15.90
• Extended Length (MM): 403.9
• Finish: Clear Anodized
• Internal Design: Monotube
• Lower Mount Type: 1/2in Heim
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Piston Type: Linear
• Segment: Motorsports
• Series: AS2 Series
• Shaft Diameter: 14mm
• Spring Hardware: B4-KT1-Z245A01
• Spring Seat Included: No
• Stroke/Travel Length (IN): 4.90
• Stroke/Travel Length (mm): 124.5
• Upper Mount Type: 1/2in Heim
• Valving Identifier: Linear Dry Kit (no valving)

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 2.4000 POUNDS
