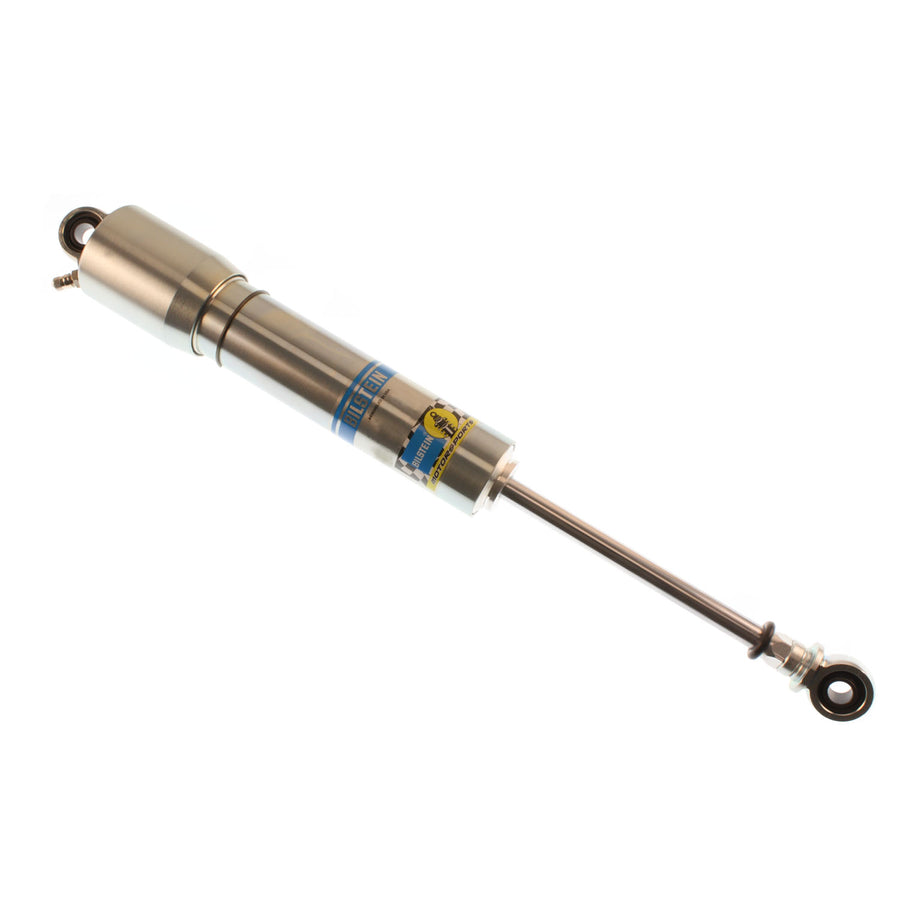

Bilstein Shock Absorbers

Bilstein XVS-S Series shock absorbers feature a 46mm piston, steel construction, and a threaded body designed for motorsports applications. These shock absorbers are rebuildable via an integrated Schrader valve. The large volume dual zone nitrogen bulb, with optional base valve, allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. XVS-S Series shock absorbers are ideal for racers looking for a steel, rebuildable design with multiple upgrade options and superior performance.

• 46mm extruded aluminum threaded body improves durability and heat dissipation
• Dual-zone gas bulb decreases gas pressure while increasing grip levels
• Optimized floating piston improves driver feel and response

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860727165
• Boot Included: No
• Collapsed Length (IN): 15.24
• Collapsed Length (MM): 387.0
• Compression @0.52m/s: 590
• Extended Length (IN): 23.64
• Extended Length (MM): 600.5
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: 1/2in Heim
• PartType: Shocks / Struts
• Position: Rear Left
• Rebound @0.52m/s: 1625
• Segment: Motorsports
• Series: XVS-S Series
• Shaft Diameter: 14mm
• Spring Seat Included: No
• Stroke/Travel Length (IN): 8.41
• Stroke/Travel Length (mm): 213.6
• Upper Mount Type: 1/2in Heim
• Valving Identifier: 3.5-1S

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 7.0000 POUNDS
