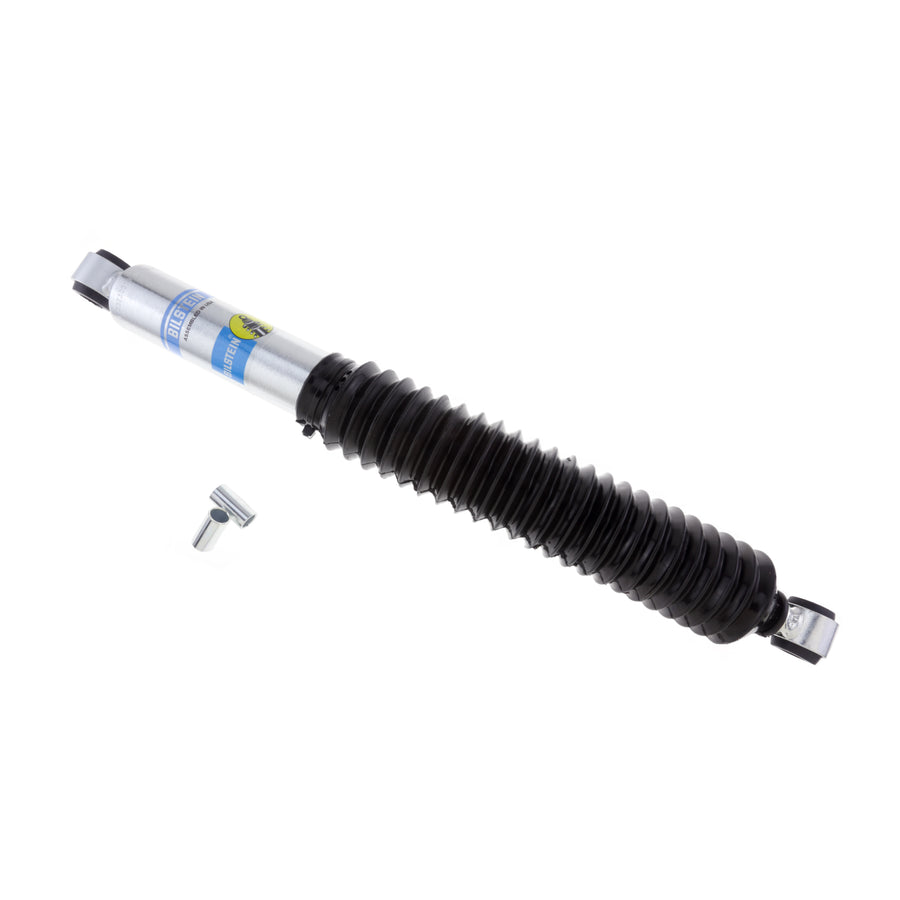

Bilstein Shock Absorbers

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Vehicle Specific

• Jeep CJ5 1976-1983, CJ7 1976-1986

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860727349
• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Non-Coilover)
• Boot Included: Black Bellows
• Collapsed Length (IN): 13.66
• Collapsed Length (MM): 347.0
• Compression @0.52m/s: 595
• Extended Length (IN): 21.70
• Extended Length (MM): 551.2
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 5/8in
• Mount Type: Eye-to-Eye
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Rebound @0.52m/s: 1810
• Reservoir: No
• Segment: Light Truck
• Series: B8 5125
• Shaft Diameter: 14mm
• Spring Seat Included: No
• Stroke/Travel Length (IN): 8.04
• Stroke/Travel Length (mm): 204.2
• Upper Mount Type: Eye 5/8in

Extended Information:

• Country of Origin: MX
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 4.4500 POUNDS
