Bilstein Shock Absorbers
Bilstein

Bilstein Shock Absorbers

$909.85
Authorized dealer — genuine parts & manufacturer warranty
Free shipping on orders over $199 (lower 48 states)
Professional installation at our Burien shop — 206-774-2000
Finance with Sunbit — decisions in seconds, 3–24 months
SKU: BBGL-25-294101 Availability: In Stock

Product Details

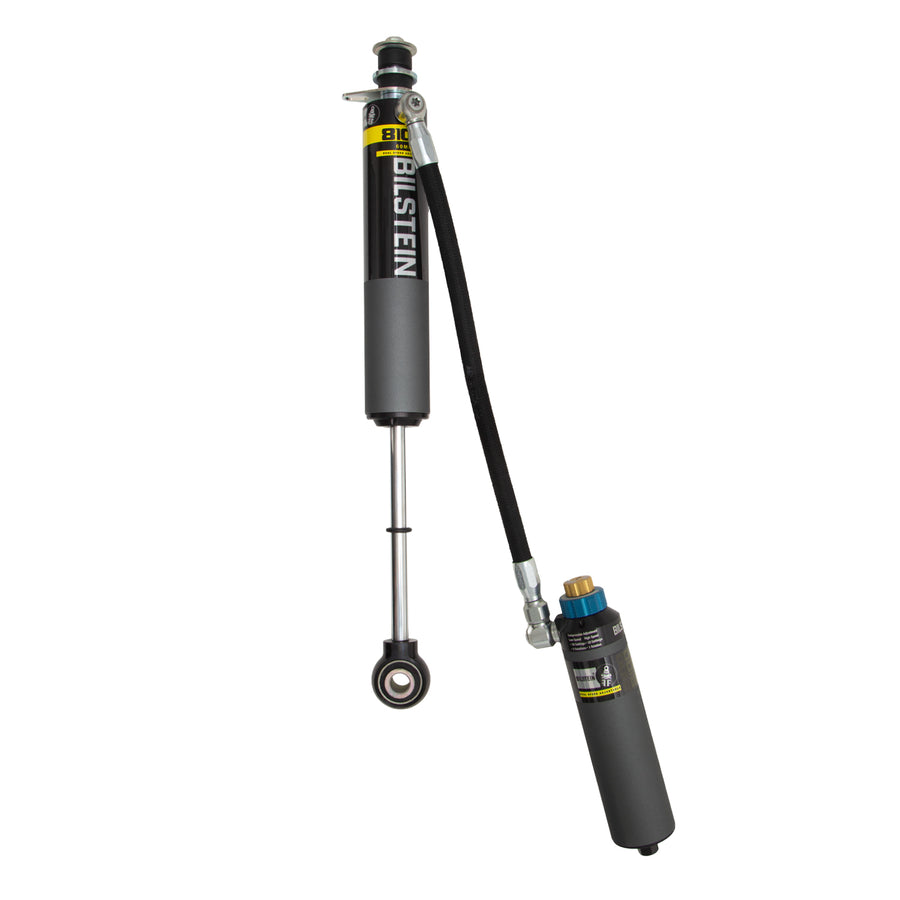

The Bilstein B8 8100 (DSA) reservoir shock absorber is an adjustable large bore 60mm (2.65" OD) direct fit solution for lifted trucks and SUVs. Constructed from aerospace quality billet components, the large 60mm ID shock body offers a higher oil volume capacity to control heat while tackling rough road surfaces over long distances. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface. Each B8 8100 (DSA) offers a unique remote or piggyback reservoir solution for an easy, hassle free installation. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 (DSA) will allow you to tame the terrain in comfort.
  • 60mm large bore digressive piston offers a greater range of tunability and delivers exceptional comfort without sacrificing control
  • Direct fit for an easy installation
  • Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface
Vehicle Specific
  • Lexus GX460 2010-2023, GX470 2003-2009, Toyota 4Runner 2003-2024

Attributes:

  • Brand Name: Bilstein
  • GTIN: 00651860962375
  • Adjustable Damping: Double Adjustable Compression with Click Adjuster Knobs
  • Body Design: Smooth Body (Non-Coilover)
  • Boot Included: No
  • Collapsed Length (IN): 14.94
  • Collapsed Length (mm): 379.5
  • Extended Length (IN): 23.48
  • Extended Length (mm): 596.5
  • Finish: EVO Grey
  • Internal Design: Monotube
  • Lower Mount Type: Eye 19.1mm
  • PartType: Shocks / Struts
  • Piston Diameter: 60mm
  • Reservoir: Yes
  • Segment: Light Truck
  • Series: B8 8100 (DSA)
  • Shaft Diameter: 18mm
  • Spring Seat Included: Yes
  • Upper Mount Type: Stem

Extended Information:

  • Country of Origin: US
  • Emissions : Emissions Compliance Exempt

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 40.5000 x 11.7500 x 6.7500 inches
  • Weight: 22.8000 POUNDS
