Bilstein Shock Absorbers

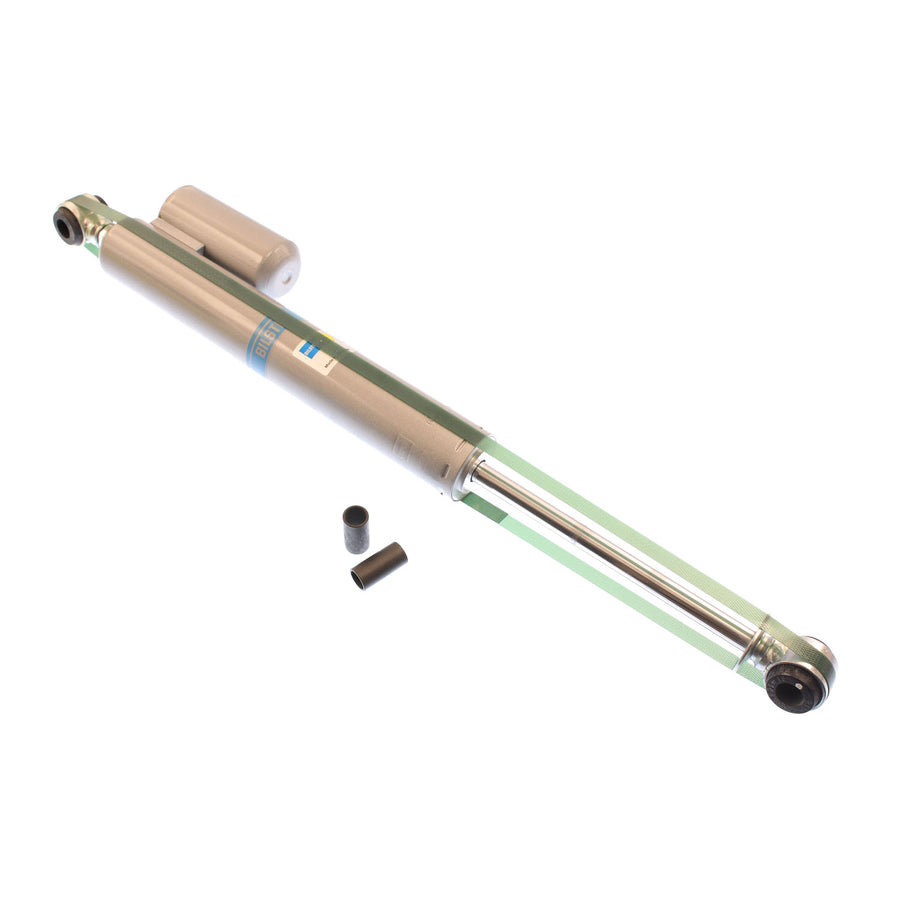

Bilstein B8 5150 fixed reservoir shock absorbers combine our high gas pressure monotube shocks with a race-inspired, fixed CrossFlow reservoir. Designed specifically for lifted and custom applications, the adjustable shock mount allows unlimited reservoir positioning. The 46mm digressive piston is available in a variety of valvings for single or multiple shock applications. The Bilstein B8 5150 shock absorber features a steel body with a platinum powder coated finish.

• Race inspired fixed CrossFlow reservoir
• Adjustable shock mount allows unlimited reservoir positioning
• Advanced design splut valving

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860467245
• Body Design: 46mm ID Smooth Body (Non-Coilover)
• Boot Included: No
• Collapsed Length (IN): 20.37
• Collapsed Length (MM): 517.5
• Compression @0.52m/s: 740
• Extended Length (IN): 34.90
• Extended Length (MM): 886.5
• Finish: Platinum Powder coat
• Internal Design: Monotube
• Lower Mount Type: Eye 5/8in
• PartType: Shocks / Struts
• Rebound @0.52m/s: 2665
• Reservoir: Yes
• Segment: Light Truck
• Series: B8 5150
• Shaft Diameter: 14mm
• Spring Seat Included: No
• Stroke/Travel Length (IN): 14.53
• Stroke/Travel Length (mm): 369.1
• Upper Mount Type: Eye 5/8in

Extended Information:

• Country of Origin: DE
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 3.5500 x 3.5500 inches
• Weight: 4.6300 POUNDS
