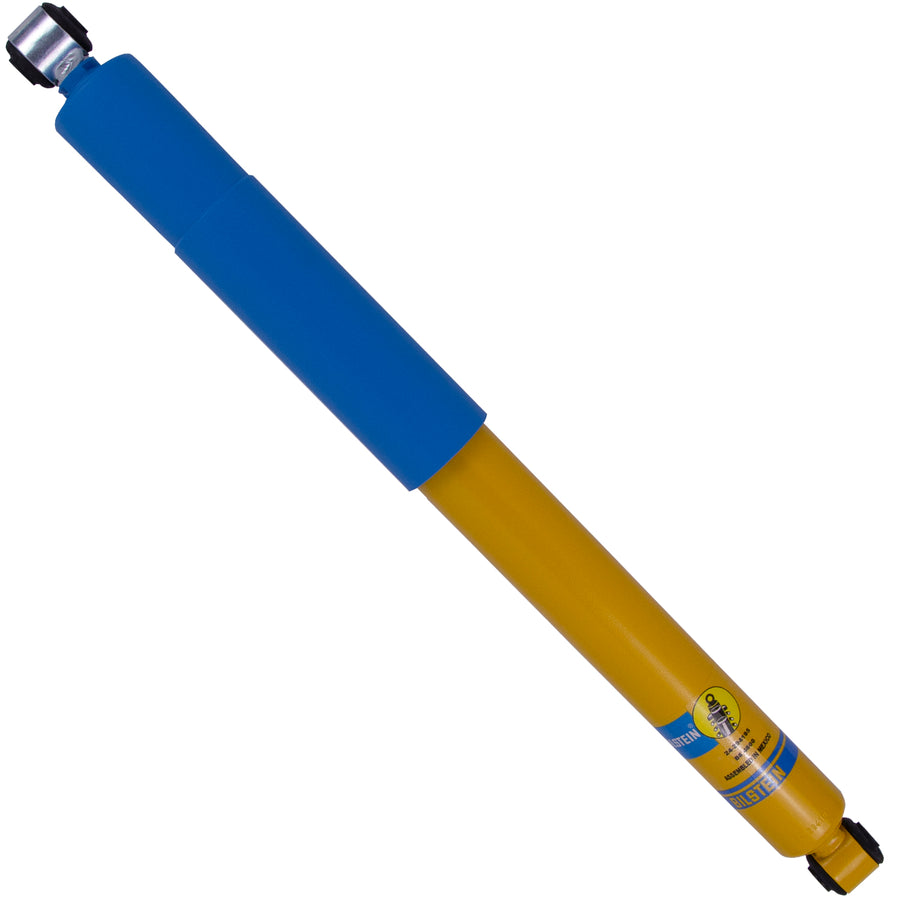

Bilstein Shock Absorbers

Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers on stock height light trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B6 4600 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B6 4600 shock absorbers are tuned for each specific application to ensure optimal performance is achieved. B6 4600 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Specific tuning for stock height vehicles
• Uses OEM springs and mounting hardware

Vehicle Specific

• Ford Ranger 2019-2023

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860875132
• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Non-coilover)
• Boot Included: Blue Straight
• Collapsed Length (IN): 15.55
• Collapsed Length (mm): 395.0
• Extended Length (IN): 24.57
• Extended Length (mm): 624.0
• Finish: Yellow Paint
• Internal Design: Monotube
• Lower Mount Type: Eye 12.1mm
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Reservoir: No
• Segment: Light Truck
• Series: B6 4600
• Shaft Diameter: 14mm
• Spring Seat Included: No
• Stroke/Travel Length (IN): 9.02
• Stroke/Travel Length (mm): 229.1
• Upper Mount Type: Eye 12.1mm

Extended Information:

• Country of Origin: MX
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 4.9000 POUNDS
