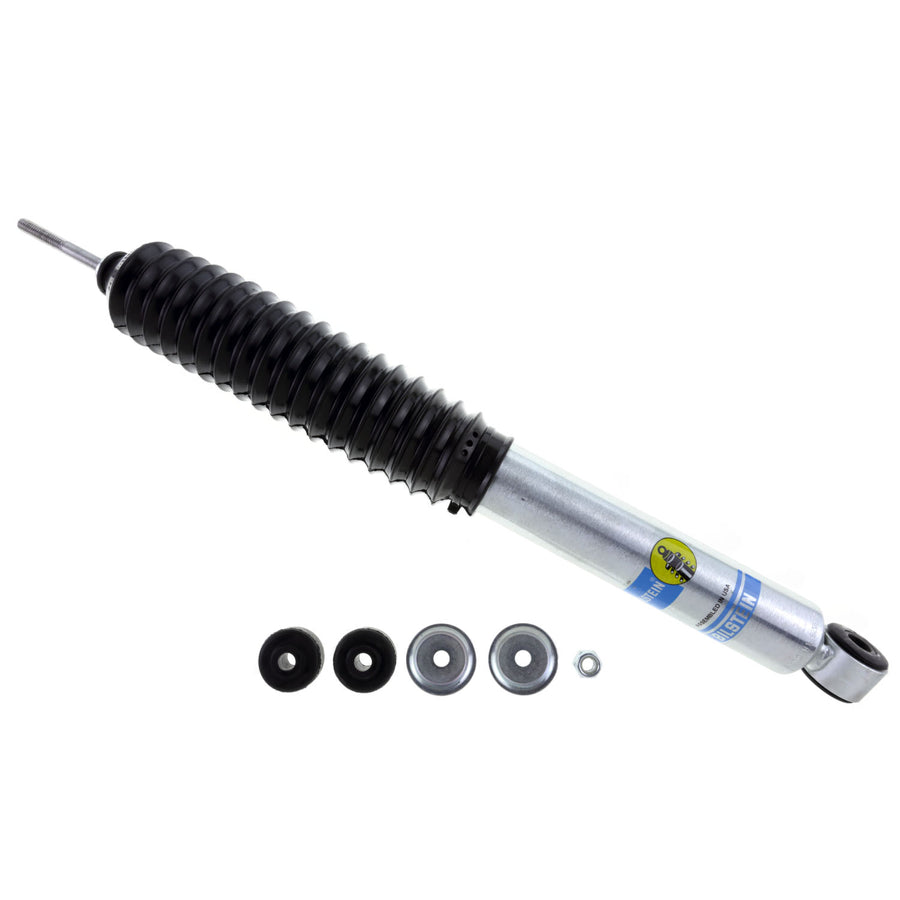

Bilstein Shock Absorbers

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Vehicle Specific

• Chevrolet Silverado 1500 HD 2001-2003, Silverado 1500 HD 2005-2006, Silverado 2500 1999-2004, Silverado 2500 HD 2001-2010, Silverado 2500 HD Classic 2007, Silverado 3500 2001-2006, Silverado 3500 Classic 2007, Silverado 3500 HD 2007-2010,

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860600161
• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Non-Coilover)
• Boot Included: Black Bellows
• Collapsed Length (IN): 13.52
• Collapsed Length (MM): 343.3
• Extended Length (IN): 21.46
• Extended Length (MM): 545.0
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 14.1mm
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Reservoir: No
• Segment: Light Truck
• Series: B8 5100
• Shaft Diameter: 14mm
• Spring Seat Included: No
• Stroke/Travel Length (IN): 7.94
• Stroke/Travel Length (mm): 201.7
• Upper Mount Type: Stem

Extended Information:

• Country of Origin: MX
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 4.2200 POUNDS
