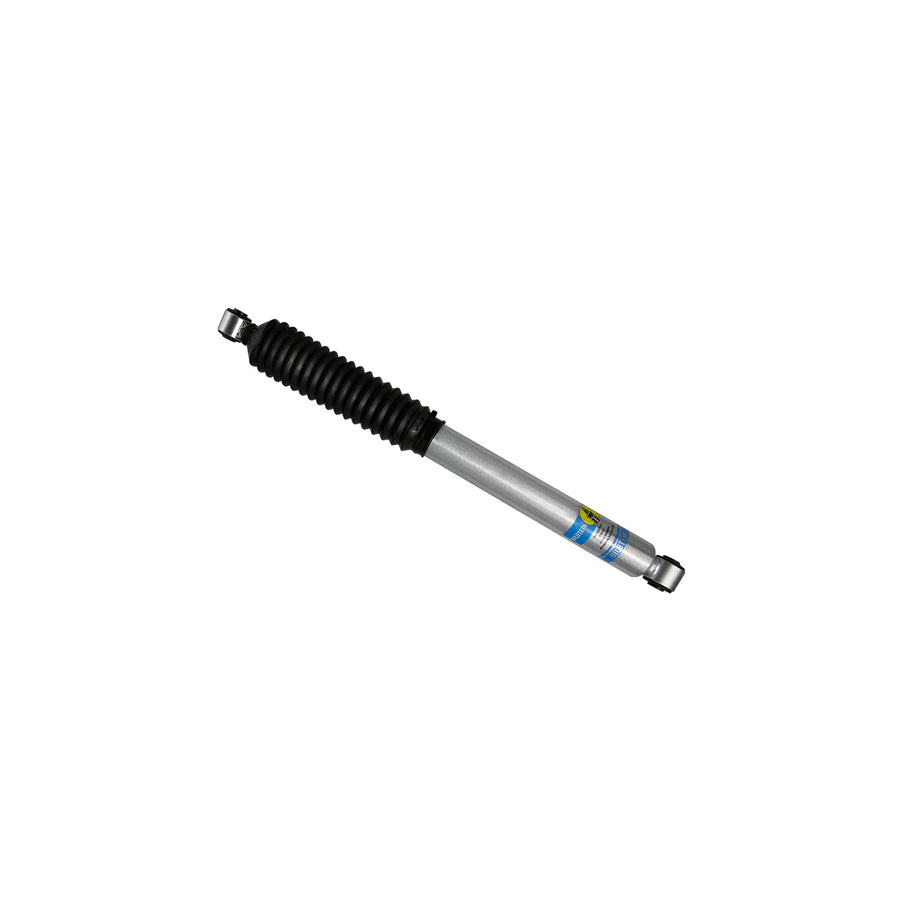

Bilstein Shock Absorbers

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Vehicle Specific

• Chevrolet Avalanche 1500 2002-2006, Avalanche 2500 2002-2006, Suburban 1500 2000-2006, Suburban 2500 2000-2013, Tahoe 2000-2006, Dodge Ram 1500 1994-2008, Ram 2500 1994-2002, Ram 3500 1994-2002, GMC Yukon 2000-2006, Yukon XL 1500 2000-2006

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860636078
• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Non-Coilover)
• Boot Included: Black Bellows
• Collapsed Length (IN): 16.16
• Collapsed Length (MM): 410.5
• Extended Length (IN): 26.14
• Extended Length (MM): 664.0
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 14.4mm
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Reservoir: No
• Segment: Light Truck
• Series: B8 5100
• Shaft Diameter: 14mm
• Spring Seat Included: No
• Stroke/Travel Length (IN): 9.98
• Stroke/Travel Length (mm): 253.5
• Upper Mount Type: Eye 14.4mm

Extended Information:

• Country of Origin: MX
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 5.0400 POUNDS
