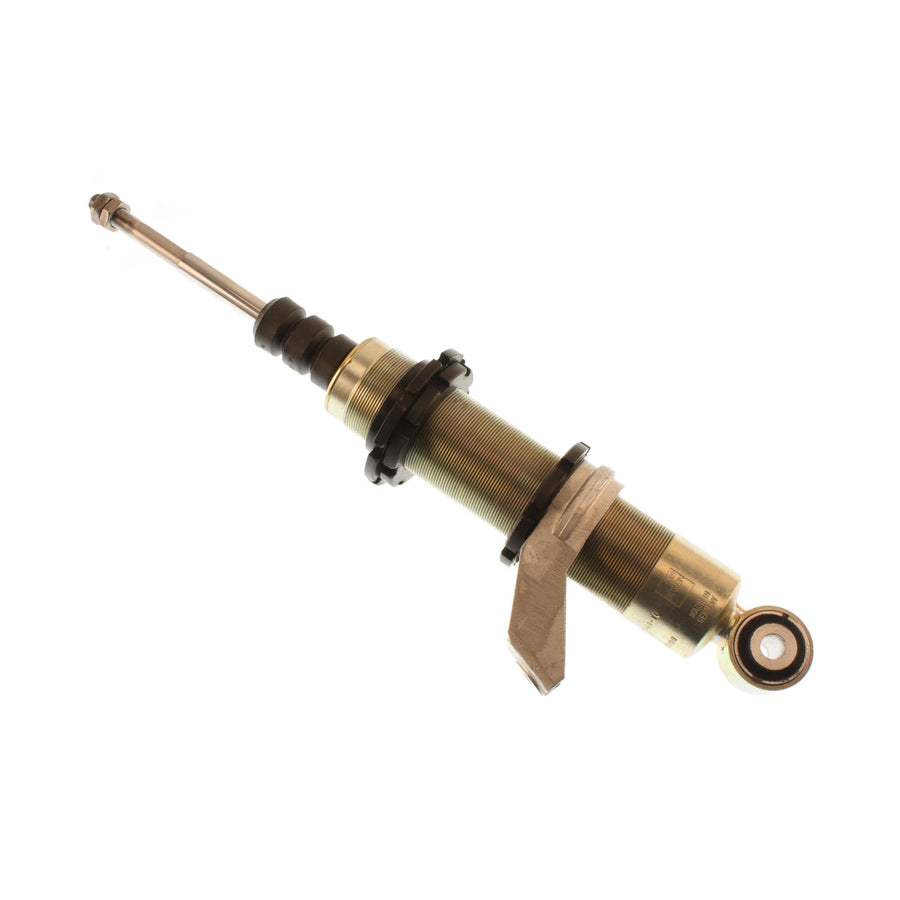

Bilstein Shock Absorbers

Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.

• Monotube design ensures consistent, fade-free performance in all conditions
• Larger working piston with deflective disc valving
• Available in steel and aluminum bodies

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860570600
• Boot Included: No
• Collapsed Length (IN): 11.42
• Collapsed Length (mm): 290.0
• Compression @0.52m/s: 2000
• Extended Length (IN): 15.00
• Extended Length (mm): 381.0
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 12.2mm
• PartType: Shocks / Struts
• Rebound @0.52m/s: 3000
• Segment: Motorsports
• Series: Motorsports
• Spring Seat Included: Yes
• Upper Mount Type: Stem

Extended Information:

• Country of Origin: DE
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 4.1500 x 4.1500 inches
• Weight: 5.2500 POUNDS
