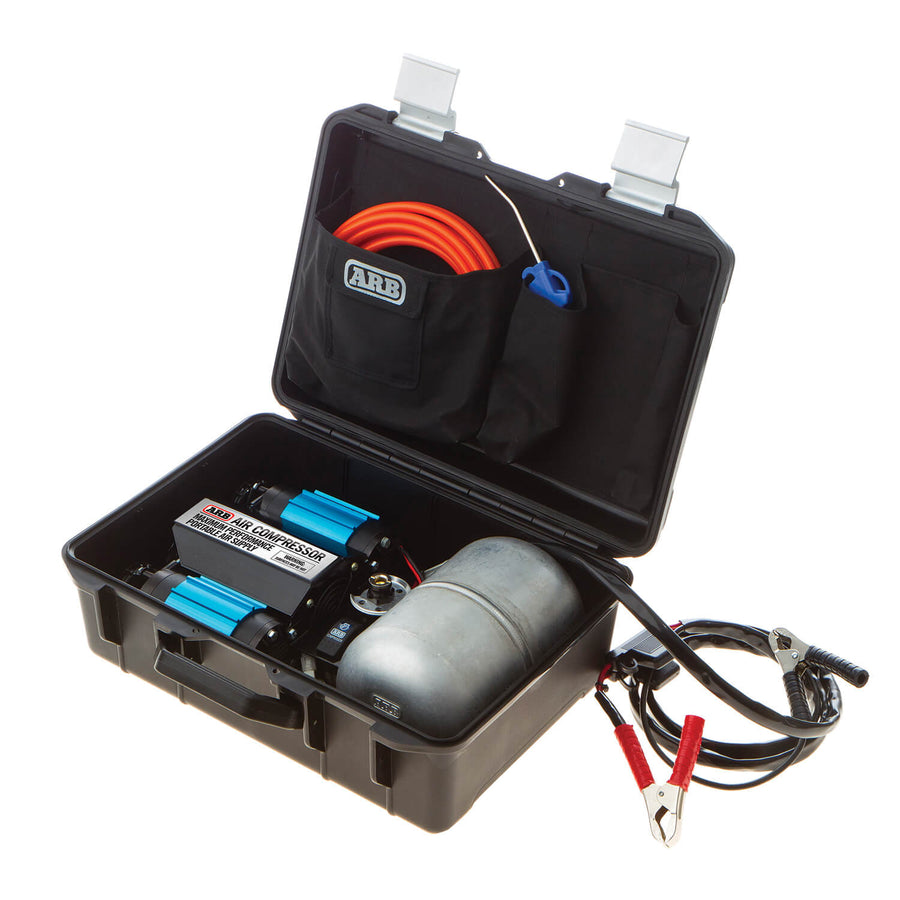

ARB - CKMTP12 - Air Compressor

ARB's new CKMTP12 twin portable air compressor was designed to fill the market need for a compact sized yet high performance compressed air source for rapid inflation of large tires as well as the high volume air needs of most air powered tools. The ARB CKMTP12 is a world class recreational product designed and built to commercial/industrial standards to survive harsh and demanding outback conditions.

• Designed for inflating tires and Air Locker activation when used in conjunction with optional accessories
• Over-pressure safety valve equipped
• On-board model available in either a 12V or 24V configuration
• Suitable for many air tools when used in conjunction with a 1 gallon air tank (optional with on-board models)
• 100% duty cycle
• Sealed for moisture and dust resistance
• Hard anodized cylinder bores for reduced friction
• Teflon impregnated carbon fiber piston seals for maximum trouble-free life
• Anodized mounting bracket dissipates heat
• Integrated pressure switch, relays and IP55 (waterproof/dustproof) brushless fan cools electronics, motors and cylinder heads

Attributes:

• Brand Name: ARB
• GTIN: 09332018003850
• Add-On: N/A
• Air Flow 0PSI: 6.16CFM
• Air Flow 29PSI: 4.68CFM
• Duty Cycle: 100% 60/0
• Height: 7.3 inch
• IP Rating: IP55
• Length: 18.8 inch
• Max Amps: 68.6
• Max PSI: 150
• Volts: 12V
• Weight: 33 lb
• Width: 14 inch

Extended Information:

• Country of Origin: Australia
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 20 x 14 x 8 inches
• Weight: 33 POUNDS
