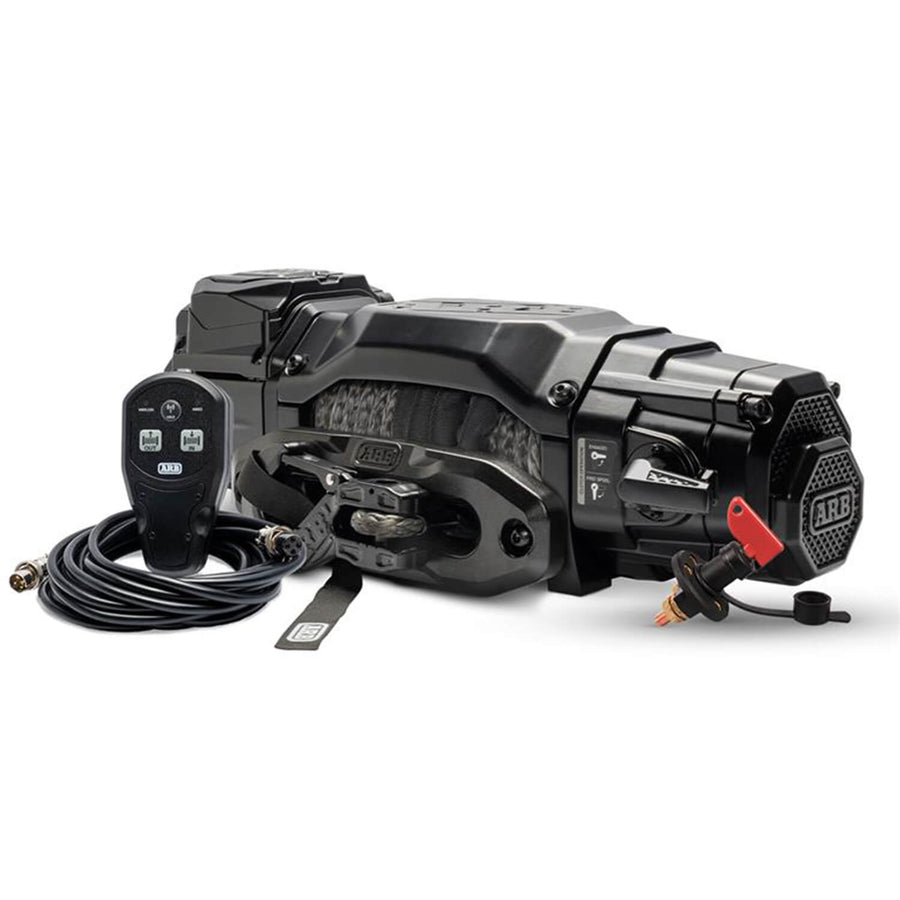

ARB - ARW100SA - ARB Winch 10000

The next generation of winch technology arrives with a compact, all-in-one motor control design that delivers clean fitment and smooth, reliable operation. Built with top-tier components and validated through rigorous performance testing, the integrated motor control unit sits within the winch itself, allowing it to work seamlessly with modern bumpers and vehicle sensors. A custom Albright contactor is built in to provide seamless power, while the direct-connection design enhances motor efficiency for steady, responsive control without the need for a separate control box. The system also features a compact pre-wired layout for quick installation, a 16-position clockable clutch handle for flexible mounting, and an IP68 rating that protects against dust and water intrusion. Engineered for durability and long service life, the ARB Winch incorporates a 4-stage hardened steel gearbox for maximum toughness, a one-piece bridging plate for improved torsional rigidity, and a tuned 12-volt motor that delivers fast line speeds. A gearbox-mounted brake ensures 100% load holding even in demanding conditions. Control is managed through a compact hand controller that works wirelessly at distances up to forty meters or via a five-meter lead for direct connection. A remote-mounted control plug enables hidden installations, while the 2.4GHz wireless link prevents signal interference. The system is completed with a 500-amp power isolation switch equipped with a stainless lanyard and protective dust cover.

• The ARB Winch features a custom Albright contactor that connects directly to the motor. This improvement increases efficiency and removes the need for a bulky control box.
• A 500A isolation switch with universal mount is included with the ARB Winch. It comes complete with a stainless lanyard and dust cover for safe and reliable operation.
• Gearbox-mounted brake ensures 100% load holding and allows powered unspooling under no load without damaging the winch, easing unspooling efforts.
• 4-Stage Gearbox with hardened steel gears provides superior load distribution with, the 171:1 ratio allows for fast line speed while maintaining pulling power.
• Dual connection remote with 2.4GHz wireless with sealed receiver circuitry for a stronger, secure connection eliminating interference or remote conflict.
• Remote mounted control plug for low profile or hidden winch mounting without losing the ability to hardwire the controller.
• One piece bridging plate offers greater torsional strength.
• Prewired connections, versatile mounting options, and preset clutch positioning allow for fast and hassle-free installation. 16 positions (22.5 deg) for clocking the clutch handle for more installation options.

Attributes:

• Brand Name: ARB
• GTIN: 09322046501596
• Add-On: No
• Brake: Gearbox Mounted 100% Load Holding Proportional Friction Brake
• Color: Black
• Electrical Contactor: Albright DC Contactor – 500 Amp
• Fairlead: Forged 6061 Aluminum Hawse Fairlead
• Fitted Weight: 73.5 LBS
• Gearbox: 171:1 2-Stage Planetary and 2-Stage Spur
• Material: Aluminium/steel
• Max. Line Speed: 60 FT / MIN
• Motor: 5.3 HP
• Rated Line Pull: 10,000 LBS
• Rope: 13/32 in x 91.9 ft
• Waterproof Ratings: IP68 Winch Motor and Gearbox

Extended Information:

• Country of Origin: CN
• Emissions : 1

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.8 x 9.7 x 13.8 inches
• Weight: 76.3 POUNDS
