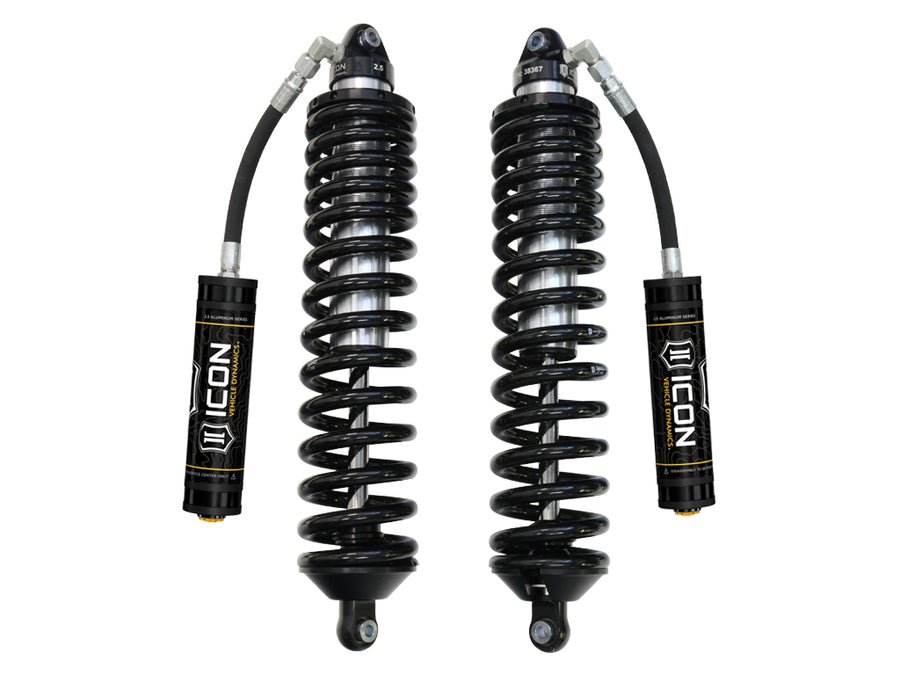

08-16 FSD 4WD 7-9" 2.5 VS RR COILOVER KIT
ICON Vehicle Dynamics

08-16 FSD 4WD 7-9" 2.5 VS RR COILOVER KIT

$1,965.55
Authorized dealer — genuine parts & manufacturer warranty
Free shipping on orders over $199 (lower 48 states)
Professional installation at our Burien shop — 206-774-2000
Finance with Sunbit — decisions in seconds, 3–24 months
SKU: FRDK-61700 Availability: In Stock

Product Details

These coil-over shocks are the ultimate suspension modification for your Super Duty. These are not race style shocks that were modified to fit they were designed from the ground up for the 2008 - 2016 Super Duty. They are adjustable in ride height from 7" to 9" of lift. They have any external Reservoir for excellent heat dissipation, a Dual Rate Spring for a great ride quality on or off-road, and are completely Rebuilable.

Attributes:

  • Brand Name: ICON Vehicle Dynamics
  • GTIN: 00840103405377
  • 306: Yes
  • 2064: Steel
  • 2329: Steel
  • 3085: Single Tube
  • 3096: Black
  • 3390: Performance
  • 7233: No
  • 8703: No
  • 9476: Yes
  • 9783: Yes
  • 10107: 390
  • 10527: No
  • 10528: Yes
  • 10530: Passive
  • 10535: 9
  • AAP_UDA_12: EA
  • AAP_UDA_22: 1
  • AAP_UDA_4: 55
  • Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
  • Adjustable Damping: NO
  • Body Diameter: 2.5
  • California Prop 65 Warning: Yes
  • Coil Over Springs Included: Yes
  • Compressed Length: 16.49
  • Cylinder Color: Silver
  • Cylinder Finish: Cadmium Plated
  • Damping Type: Oil
  • Extended Length: 25.98
  • Gas Charged: yes
  • Lower Mount Type: Eyelet
  • Material: Aluminum
  • Maximum Lift: 9
  • Minimum Lift: 7
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • Reservoir Style: Remote
  • Self-Leveling: No
  • Service Parts: 191015 - 10" FINNED RESI UPGRADE KIT
  • Shaft Diameter: 0.875
  • Shock Absorber Body End Measuring Point: Center of Eylet
  • Shock Absorber Rod End Measuring Point: Center of Eylet
  • Spring Rate Type: Progressive Dual Rate
  • Travel Length: 9.49
  • Upper Mount Type: Eyelet
  • Valving Type: Digressive

Extended Information:

  • Country of Origin: US
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 31.0000 x 13.0000 x 7.0000 inches
  • Weight: 82.0000 POUNDS
