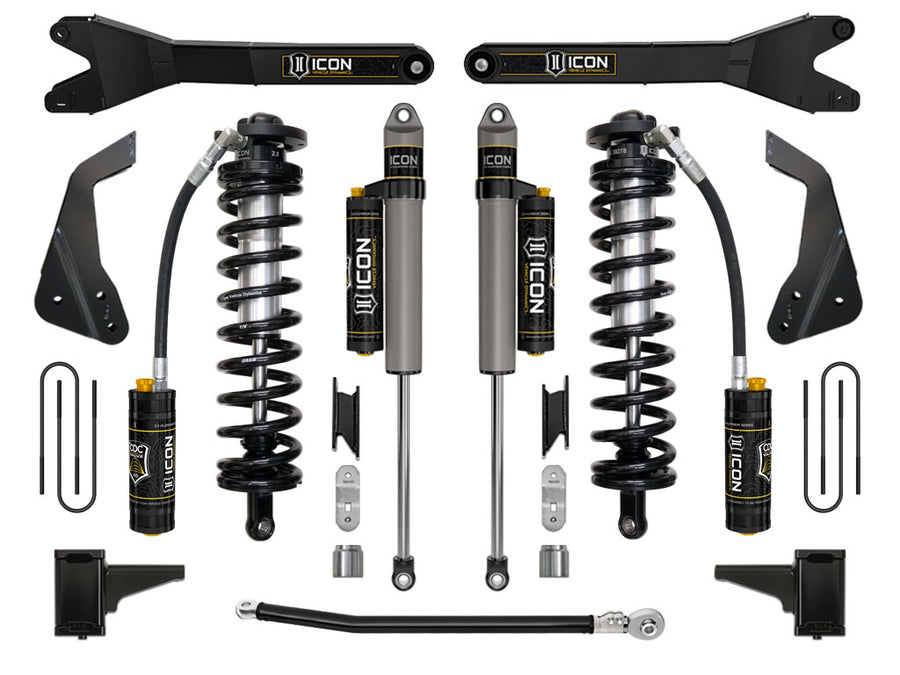

08-10 FORD F250/F350 4-5.5" STAGE 4 COILOVER CONVERSION SYSTEM W RADIUS ARM

This Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

• Eibach coil springs guaranteed for life against sagging or breakage
• Shocks are fully rebuildable and revalveable
• Coilover conversion allows for addition of secondary shock
• Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• Rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-in system fits in OE coil bucket location
• Ride height adjustable coilovers (4-5.5")
• Increased wheel travel and ride quality over stock
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103418315
• 30: Yes
• 2064: Steel
• 2371: NO
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 5.5
• 7325: 2
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• California Prop 65 Warning: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 276.0000 POUNDS
