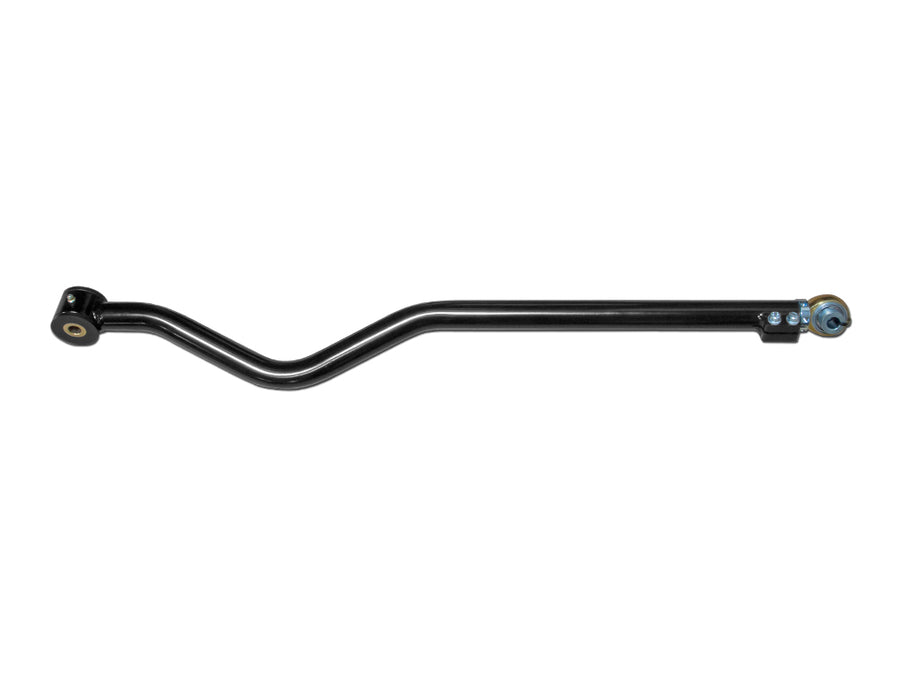

07-18 JK FRONT ADJ TRACK BAR KIT

The ICON Adjustable Front Track Bar for the 2007-2018 JK will work on any Jeep JK with 2.5 - 4.5" of lift. Upgrading your Jeep JK track bar is great for centering the front axle, allowing it to track perfectly under the vehicle vs. offset to the side. The ICON Adjustable Track Bar contains a dual stage Polyurethane / Delrin Bushing kit on one end that has minimal deflection, and a rod end with our pinch bolt housing that allows on Jeep adjustability.

• Track Bars include Dual Stage Bushing System and JM12T Rod End to minimize deflection while maximizing responsiveness
• Easy install into OEM mounts w/ application specific hardware
• On vehicle adjustable for precise track alignment
• Constructed with CNC machined and bent 1 1/4" x .250 wall 1026 seamless DOM tubing
• Allows for full suspension articulation without binding

Vehicle Specific

• ICON 07-18 JK FRONT ADJ TRACK BAR KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103400433
• 17: Black
• 30: Yes
• 40: Yes
• 73: Polyurethane
• 117: Black
• 200: Powdercoated
• 1727: Bushing
• 2339: Yes
• 2371: yes
• 3390: Performance
• 4417: Yes
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• California Prop 65 Warning: Yes
• End 2 Type: Rod End Bearing
• Material: DOM Steel
• Service Parts: 614513 - 21020/21025 BUSHING & SLEEVE SERVICE KIT

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 43.0000 x 3.0000 x 3.0000 inches
• Weight: 10.0000 POUNDS
