ICON Vehicle Dynamics

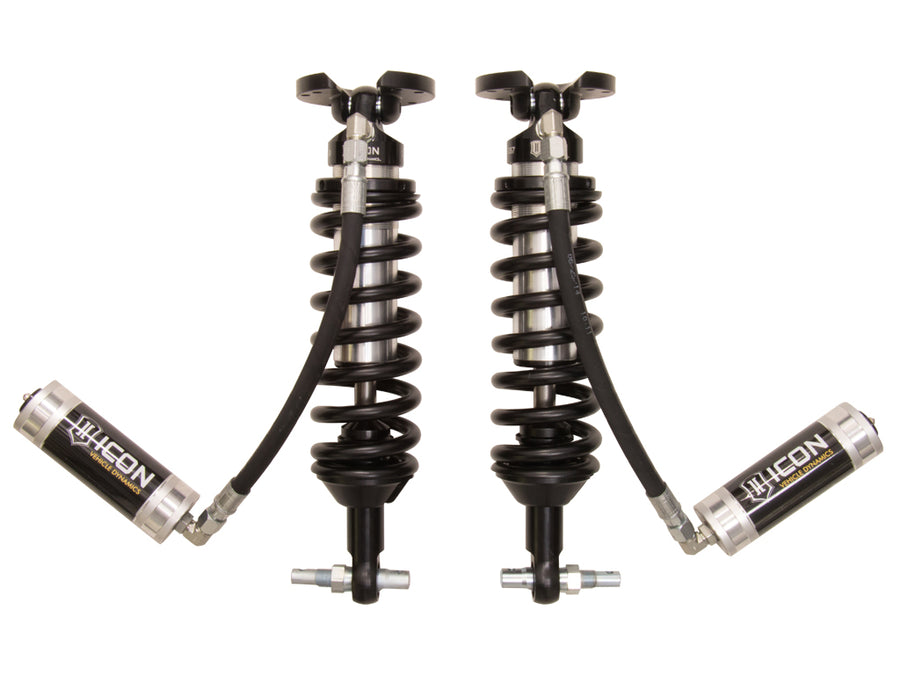

07-18 GM 1500 1-2.5" 2.5 VS RR COILOVER KIT
$2,074.75
Authorized dealer — genuine parts & manufacturer warranty
Free shipping on orders over $199 (lower 48 states)
Professional installation at our Burien shop — 206-774-2000
Finance with Sunbit — decisions in seconds, 3–24 months
Product Details
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103405995
- 306: Yes
- 2064: Steel
- 2329: Steel
- 3085: Single Tube
- 3096: Black
- 3390: Performance
- 7233: No
- 8703: No
- 9476: Yes
- 9783: Yes
- 10107: 650
- 10527: No
- 10528: Yes
- 10530: Passive
- 10535: 2.5
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
- Adjustable Damping: NO
- Body Diameter: 2.5
- Boot Included: No
- California Prop 65 Warning: Yes
- Coil Over Springs Included: Yes
- Compressed Length: 15.27
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Damping Type: Gas
- Dust Shield: No
- Extended Length: 19.94
- Gas Charged: Yes
- Lower Mount Type: BAR PIN
- Material: Steel
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Reservoir Style: Remote
- Self-Leveling: No
- Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Spring Rate Type: Linear
- Travel Length: 4.67
- Upper Mount Type: MOUNT PLATE
- Valving Type: Digressive
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 27.0000 x 12.0000 x 6.0000 inches
- Weight: 50.0000 POUNDS
